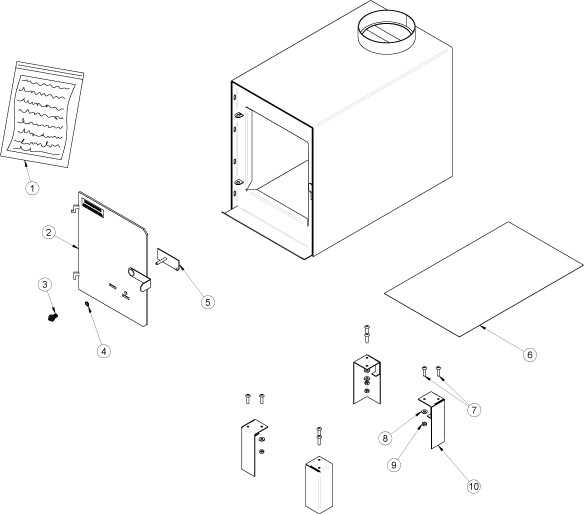

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | SE45087 HUNTER INSTRUCTION MANUAL KIT WITH HARDWARE 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 2 | SE17006 HUNTER DOOR ASSEMBLY 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 3 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 4 | 30063 1/4"⌀ PUSH NUT 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 5 | SE17007 AIR CONTROL PLATE ASSEMBLY 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 6 | PL17014 BOTTOM HEAT SHIELD 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 7 | 30024 1/4-20 x 1" MECHANICAL SCREW PAN QUADREX ZINC 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 8 | 30185 BLACK WASHER 17/64" AA TYPE 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 9 | 30100 BLACK HEX NUT 1/4 - 20 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 10 | PL17002 HUNTER LEG 4 / appliance (sold individually) | CAD $15.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
