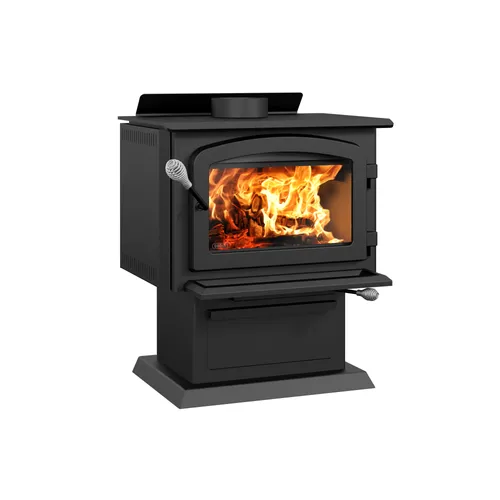

BLACKCOMB II
DB02811-1Serial Numbers: 3528 to 6397
The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC01299 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 3 | 30898 BLACK ROUND WOODEN HANDLE 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 4 | SE24300 CAST IRON DOOR WITH HANDLE AND GASKET 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 5 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 6 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 7 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | SE70700 16 3/4"W x 9 5/8"H x 10 3/4"H GLASS WITH GASKET 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | PL70675 RIGHT GLASS FRAME 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 12 | PL70676 LEFT GLASS FRAME 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 13 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 14 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 4 / appliance (sold individually) | CAD $2.00 | -- | |
| 15 | PL70708 ASH SHELF 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 16 | SE70618 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 17 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 18 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 19 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 20 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 21 | PL70706 DECORATIVE PANEL 2 / appliance (sold individually) | CAD $55.00 | -- | |
| 22 | PL70562 PEDESTAL BACK PANEL 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 23 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 4 / appliance (sold individually) | CAD $12.00 | -- | |
| 24 | PL70713 AIR DEFLECTOR 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 25 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | CAD $10.00 | -- | |
| 26 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 27 | PL36274 3 5/8" x 5 3/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 28 | PL70516 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $50.00 | -- | |
| 29 | 21586 18 7/8" x 9 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 30 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 31 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 32 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 33 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 34 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 35 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 36 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 37 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 38 | PL05530-02 THERMODISC BOX (COVER) 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 39 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 40 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 41 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 42 | PL65960 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 43 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 0 | SE74167 DOOR HINGE REPLACEMENT KIT / appliance (sold individually) | CAD $43.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
