JURASSIEN
DB03000Serial Numbers: 17751 to 23836

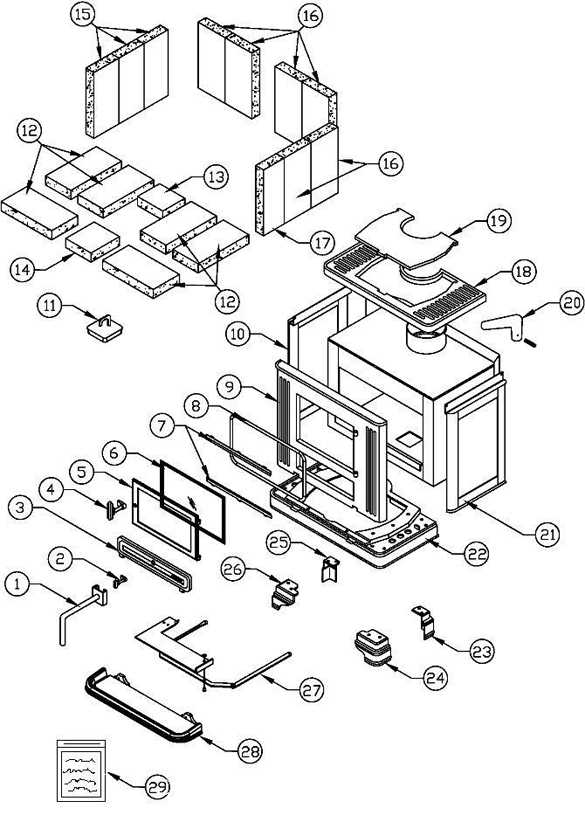

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | SE16084 HANDLE ADAPTOR 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 2 | GP18147311911 ASH PANEL HANDLE (NEW) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 3 | SE25001 JURASSIEN ASH DRAWER DOOR 1 / appliance (sold individually) | -- | -- | |
| 4 | GP12839311911 LOADING DOOR HANDLE (NEW) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 5 | SE25000 JURASSIEN WOOD DOOR FRAME WITH GASKET 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 6 | SE16093 JURASSIEN EPA GLASS 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 7 | PL16094 GLASS RETAINER 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 8 | AC06710 GLUE AND 3/8" x 7' WHITE DOOR GASKET KIT 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 9 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 10 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 11 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 12 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $3.50 | -- | |
| 13 | PL36103 3 1/2" x 4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 14 | PL36084 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 15 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- | |
| 16 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $10.00 | -- | |
| 17 | PL36021 2 1/8" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 18 | GP11112370100 EPA JURASSIEN TOP 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 19 | SE16080 JURASSIEN WOOD STOVE CAST IRON TOP 1 / appliance (sold individually) | -- | -- | |
| 20 | SE16102 AIR CONTROL ASSEMBLY 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 20 | PL16122 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 21 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 22 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 23 | GP12251370153 3802 JURASSIEN CHARCOAL RIGHT BACK LEG 1 / appliance (sold individually) | CAD $37.00 | -- | |
| 24 | GP12226370153 3802 JURASSIEN ANTHRACITE RIGHT LEG 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 25 | GP12252370153 3802 JURASSIEN CHARCOAL LEFT BACK LEG 1 / appliance (sold individually) | CAD $37.00 | -- | |
| 26 | GP12227370153 3802 JURASSIEN CHARCOAL LEFT LEG 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 27 | SE04000-02 AIR CONTROL RETROFIT FOR JURASSIEN EPA 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 28 | SE16095 CAST IRON ASH LIP 1 / appliance (sold individually) | -- | -- | |
| 29 | SE16081 JURASSIEN ASH DRAWER 1 / appliance (sold individually) | -- | -- | |
| 30 | 45061 GÉMINI 1500 EPA SERIES MANUAL ELDORADO/ADIRONDACK 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
