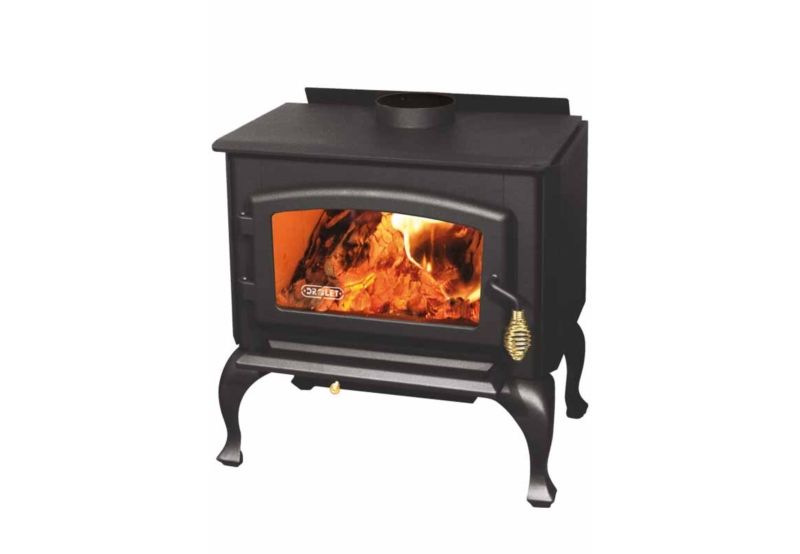

CELTIC
DB03010Serial Numbers: 20917 to 24080

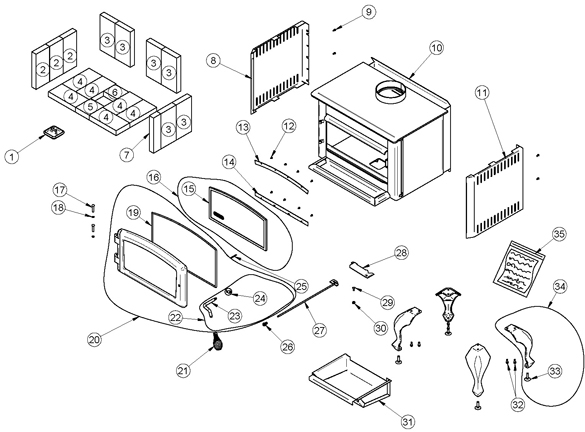

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 2 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- | |
| 3 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $3.50 | -- | |
| 4 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $3.50 | -- | |
| 5 | PL36084 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 6 | PL36103 3 1/2" x 4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 7 | PL36021 2 1/8" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 8 | PL16039-01 LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 9 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 4 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 11 | PL16039 RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 12 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 13 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 14 | PL08537-05 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 15 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 16 | SE08537-10 7 7/8" x 16 3/4" x 8 25/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 17 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 18 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 19 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 20 | SE24085 DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 21 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 22 | AC09165 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 24 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 25 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 26 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 27 | SE16032 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 28 | SE16028 AIR CONTROL PLATE ASSEMBLY 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 29 | 30096 1/4-20 x 3/4" ZINC CARRIAGE BOLT 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 30 | 30220 FLANGED LOCKNUT 1/4-20 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 31 | SE16114 ASH DRAWER 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 32 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 33 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 34 | PL24098 BLACK CAST IRON LEG WITH LEVELING BOLT 4 / appliance (sold individually) | CAD $55.00 | -- | |
| 35 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
