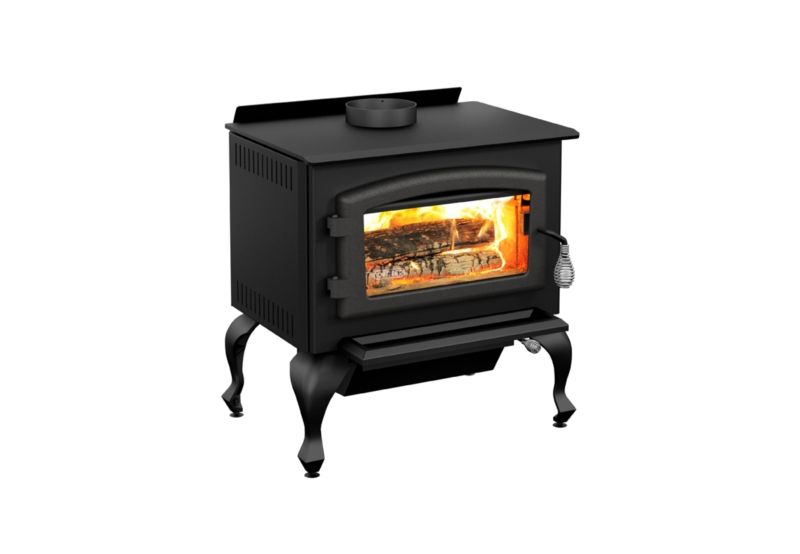

COLUMBIA
DB03015Serial Numbers: 100 to 2626

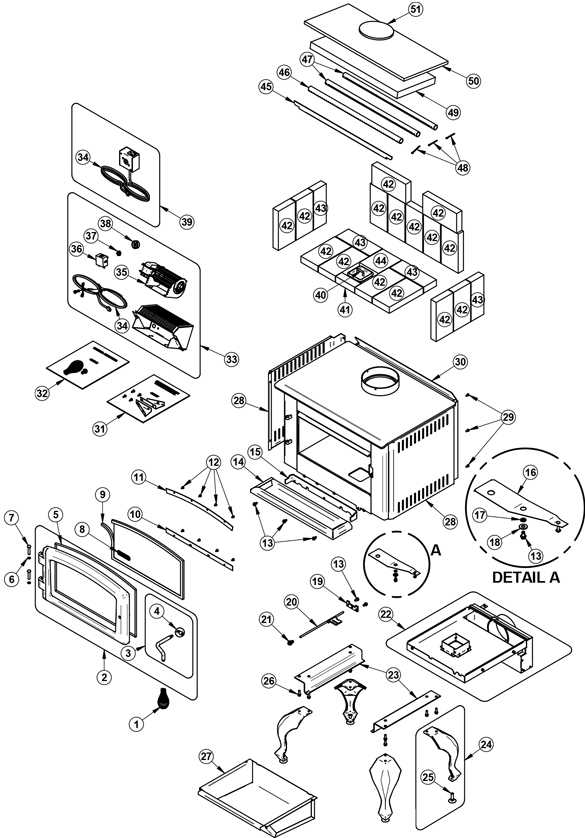

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | SE24085 DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 3 | AC09165 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 4 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 5 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 6 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 7 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 8 | SE08537-10 7 7/8" x 16 3/4" x 8 25/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 9 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 10 | PL08537-05 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 11 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 12 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 13 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 14 | PL53791 ASH LIP 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 15 | PL53804 ASH LIP SUPPORT 1 / appliance (sold individually) | CAD $26.00 | -- | |
| 16 | SE53529 AIR CONTROL DAMPER WITH HARDWARE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 17 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 18 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 19 | PL65572 AIR CONTROL ROD GUIDE 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 20 | SE53808 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 21 | AC07865 1/4" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 22 | AC01338 5"Ø FRESH AIR INTAKE KIT FOR WOOD STOVE ON LEGS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 23 | PL53948 RIGHT LEGS SUPPORT 2 / appliance (sold individually) | CAD $22.00 | -- | |
| 24 | PL24098 BLACK CAST IRON LEG WITH LEVELING BOLT 4 / appliance (sold individually) | CAD $55.00 | -- | |
| 24 | PL24098-01 BRUSH NICKEL CAST IRON LEG 4 / appliance (sold individually) | CAD $270.00 | -- | |
| 25 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 26 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 8 / appliance (sold individually) | CAD $2.00 | -- | |
| 27 | SE53596 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 28 | PL53795 DECORATIVE PANEL 2 / appliance (sold individually) | CAD $75.00 | -- | |
| 29 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 6 / appliance (sold individually) | CAD $2.00 | -- | |
| 30 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 31 | SE45067 BLOWER INSTALLATION SHEET WITH SCREWS 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 32 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 33 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 34 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 35 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 36 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 37 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 38 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 39 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 40 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 41 | PL36115 4 1/2" x 1 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 42 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 15 / appliance (sold individually) | CAD $3.50 | -- | |
| 43 | PL36026 3" x 8" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 44 | PL36062 4 1/2" x 5 1/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 45 | PL53533 FRONT BAFFLE SUPPORT 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 46 | PL53516 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 47 | PL53517 MIDDLE OR REAR SECONDARY AIR TUBE 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 48 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 49 | 21204 20 1/2" x 9" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 50 | 21037 23 1/2" x 10 1/2" x 1/2" BAFFLE INSULATION 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 51 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | CAD $25.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
