LEGEND

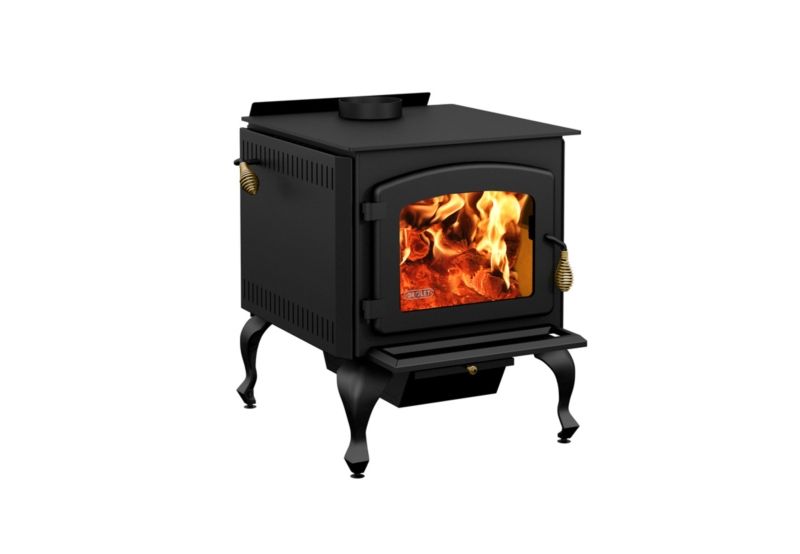

DB03070Serial Numbers: 12663 to 18570

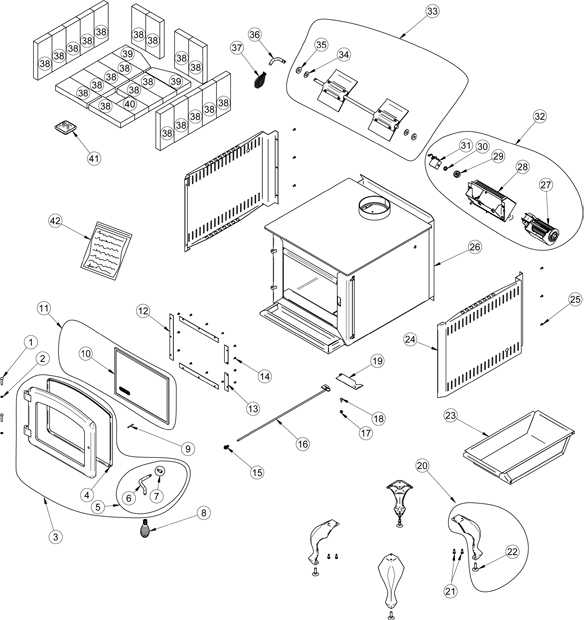

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 2 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 3 | SE24035 DOOR ASSEMBLY WITH GASKET AND HANDLE WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 4 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 5 | AC09150 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 6 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 7 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 8 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 9 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | SE30080 11 1/4" x 15 3/16" GLASS WITH GASKET 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 12 | PL30075 LONG GLASS RETAINER 3 / appliance (sold individually) | CAD $15.00 | -- | |
| 13 | PL30076 SHORT GLASS RETAINER 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 14 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 13 / appliance (sold individually) | CAD $1.00 | -- | |
| 15 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 16 | SE30073 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 17 | 30220 FLANGED LOCKNUT 1/4-20 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 18 | 30096 1/4-20 x 3/4" ZINC CARRIAGE BOLT 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 19 | SE30028 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 20 | PL24098 BLACK CAST IRON LEG WITH LEVELING BOLT 4 / appliance (sold individually) | CAD $55.00 | -- | |
| 21 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 8 / appliance (sold individually) | CAD $2.00 | -- | |
| 22 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 23 | SE30055 ASH DRAWER 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 24 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 25 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 6 / appliance (sold individually) | CAD $2.00 | -- | |
| 26 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 27 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 28 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 29 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 30 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 31 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 32 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 33 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 34 | PL30257 PROTECTION WASHER 2 / appliance (sold individually) | CAD $3.00 | -- | |
| 35 | 21120 INSULATING WASHER 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 36 | PL52683 REMOVABLE HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 37 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 38 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 21 / appliance (sold individually) | CAD $10.00 | -- | |
| 39 | PL36054 4" x 9" x 2 1/16" x 4 3/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 40 | PL36022 4" x 5 1/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 41 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 42 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
