DB03080

CLASSIC

14121 to 19570

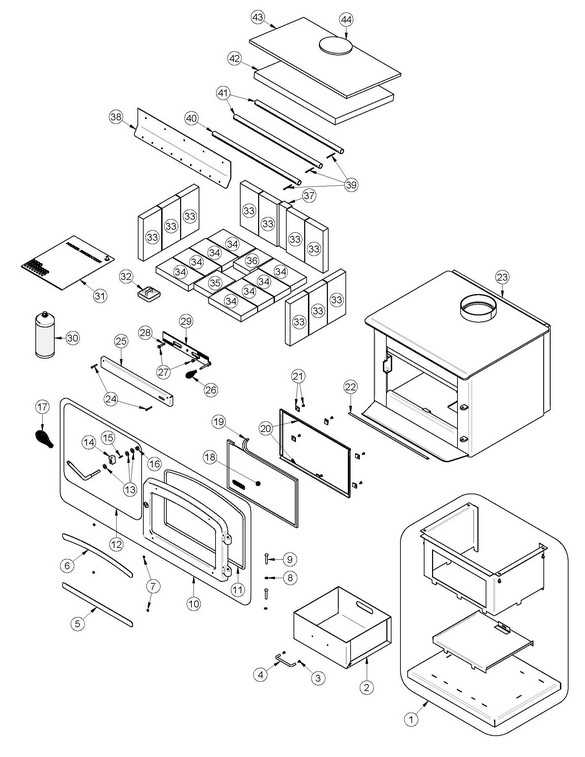

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
2SE47076
ASH DRAWER
1 / appliance (sold individually)
CAD $47.00
330124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
2 / appliance (sold individually)
--
428061
CHROME ASH DRAWER HANDLE
1 / appliance (sold individually)
CAD $7.00
5PL55101
DECORATIVE BOTTOM DOOR TRIM
1 / appliance (sold individually)
CAD $45.00
6PL55102
DECORATIVE TOP DOOR TRIM
1 / appliance (sold individually)
CAD $34.00
730417
BLACK HEX NUT #8-32
4 / appliance (sold individually)
--
830055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
--
930169
DOOR HINGE PIN 5/16"O x 1 3/4" L
2 / appliance (sold individually)
CAD $1.00
10SE24107-06
BLACK CAST IRON DOOR WITH GASKET AND HANDLE
1 / appliance (sold individually)
CAD $170.00
11AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
12AC09171
REMPLACEMENT HANDLE & LATCH KIT
1 / appliance (sold individually)
CAD $37.00
1330205
ZINC WASHER ID 13/32" x OD 13/16"
3 / appliance (sold individually)
--
1430033
STEEL DOOR LATCH
1 / appliance (sold individually)
CAD $10.00
1530533
LATCH KEY PATH PIN
1 / appliance (sold individually)
CAD $2.00
1630224
LOCKNUT 3/8"-16 HEX
1 / appliance (sold individually)
CAD $1.00
18SE55103
10 3/16" x 17 1/8" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
CAD $130.00
19AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
20PL55041
GLASS RETAINER FRAME
2 / appliance (sold individually)
CAD $10.00
21SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
--
22PL06703-01
NICKEL DECORATIVE ASH SHELF TRIM
1 / appliance (sold individually)
CAD $20.00
2430125
MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC
2 / appliance (sold individually)
--
25PL55015
AIR CONTROL COVER
1 / appliance (sold individually)
CAD $21.00
26AC07863
1/4" CHROME LONG COIL HANDLE
1 / appliance (sold individually)
--
2730094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
2 / appliance (sold individually)
--
2830428
BUSHING
2 / appliance (sold individually)
--
29SE55013
AIR CONTROL SLIDE
1 / appliance (sold individually)
CAD $41.00
30AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
--
31SE45145
CLASSIC EPA MANUAL KIT
1 / appliance (sold individually)
CAD $28.00
32SE16059
ASH PLUG
1 / appliance (sold individually)
--
3329010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
10 / appliance (sold individually)
--
3429000
4" x 8" x 1 1/4" REFRACTORY BRICK
8 / appliance (sold individually)
--
35PL36118
4 1/2" x 5 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
CAD $10.00
36PL36057
4" x 5 3/4" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
CAD $7.00
3721200
9" x 2" x 1 1/4" REAR BRICK WITH HOLE
1 / appliance (sold individually)
CAD $17.00
38SE55004
DEFLECTOR REPAIR KIT
1 / appliance (sold individually)
CAD $65.00
39SE36250
STAINLESS STEEL COTTER PIN 1/8" x 1 1/2" (12 UNITS)
1 / appliance (sold individually)
--
40PL55038
FRONT SECONDARY AIR TUBE
1 / appliance (sold individually)
CAD $55.00
41PL55037
MIDDLE OR REAR SECONDARY AIR TUBE
2 / appliance (sold individually)
CAD $55.00
4221202
VERMICULITE BAFFLE 20" x 14 1/2" x 1 1/4"
1 / appliance (sold individually)
CAD $41.00
4321137
13 1/2" x 24" x 1/2" BAFFLE INSULATION
1 / appliance (sold individually)
CAD $20.00
44PL34026
BAFFLE INSULATION WEIGHT
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
