ESCAPE 1800 - BLACK DOOR
DB03100Serial Numbers: 1303 to 5016

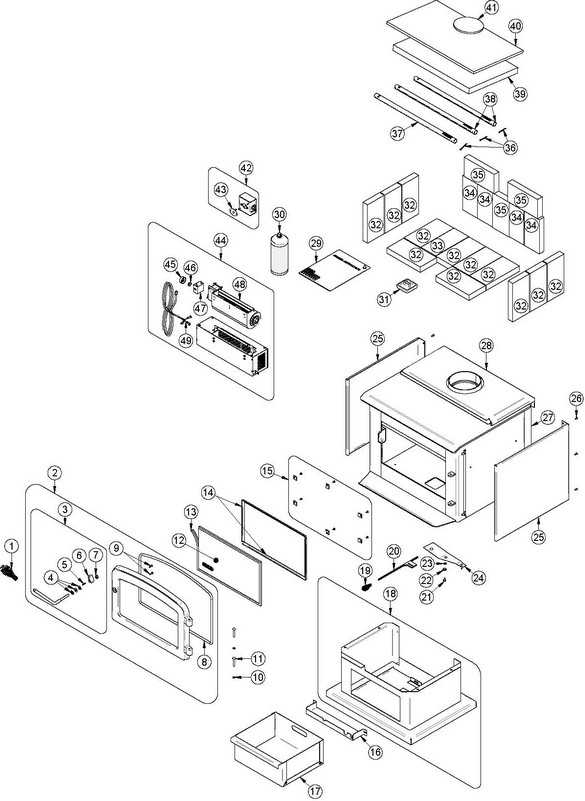

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | SE24107 REPLACEMENT DOOR WITH GASKET WITHOUT GLASS AND HANDLE 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 3 | AC09171 REPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 4 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 5 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 6 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 7 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 8 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 9 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 10 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 11 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 12 | SE55103 10 3/16" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 13 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 14 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 15 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 16 | PL53664 AIR CONTROL COVER 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 17 | SE08304-03 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 18 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 19 | AC07866 1/4" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 20 | PL53530 AIR CONTROL ROD 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 21 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 22 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 23 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 24 | SE53529 AIR CONTROL DAMPER WITH HARDWARE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 25 | PL53657 LEFT OR RIGHT DECORATIVE SIDE PANEL 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 26 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 7 / appliance (sold individually) | CAD $2.00 | -- | |
| 27 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 28 | SE53659 TOP AIR MATE 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 29 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 30 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 31 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 32 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | CAD $10.00 | -- | |
| 33 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 34 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $3.50 | -- | |
| 35 | PL36028 4 1/2" x 8 1/8" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- | |
| 36 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 37 | PL53516 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 38 | PL53517 MIDDLE OR REAR SECONDARY AIR TUBE 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 39 | 21205 VERMICULITE BAFFLE 20 1/2" x 13 1/4" x 1 1/4" 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 40 | 21013 13 1/2" x 23 1/2" x 1/2" BAFFLE INSULATION 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 41 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 42 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 43 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 44 | AC03095 BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM) 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 45 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 46 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 47 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 48 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 49 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
