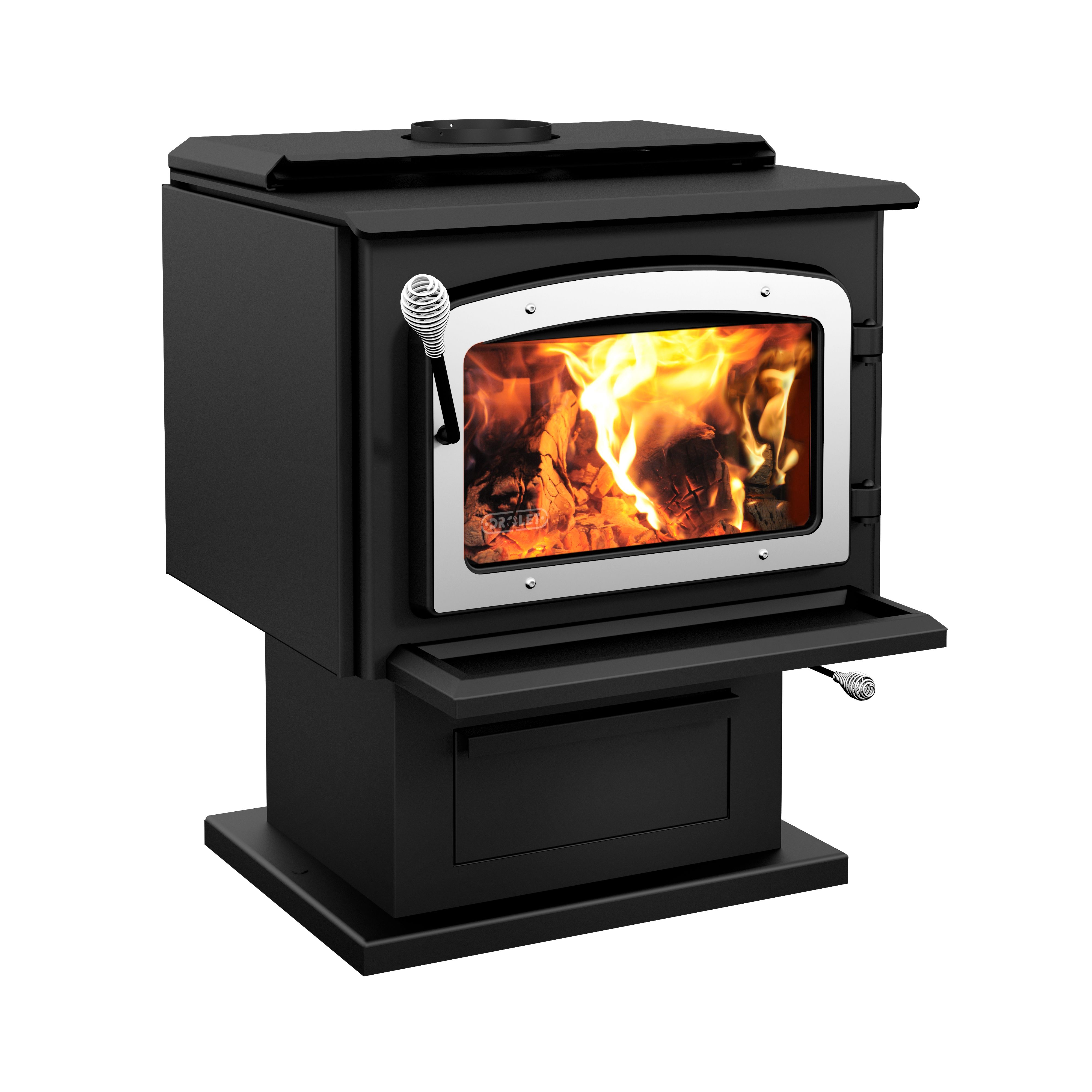

ESCAPE 1800 - NICKEL DOOR
DB03111-2Serial Numbers: 8013 to 14800
The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01315 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | SE24107-02 BLACK CAST IRON DOOR WITH GASKET AND HANDLE 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 4 | SE24107-07 CAST IRON DOOR FOR OVERLAY WITH GASKET AND HANDLE 1 / appliance (sold individually) | CAD $210.00 | -- | |
| 5 | AC09167 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 6 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 7 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 8 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 9 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 11 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 12 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 13 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 14 | SE55103 10 3/16" x 17 1/8" REMPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 15 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 16 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 17 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 18 | PL65955 ASH LIP 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 19 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 11 / appliance (sold individually) | CAD $1.00 | -- | |
| 20 | AC07865 1/4" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 21 | SE65562 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 22 | PL65579 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 23 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 24 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 25 | 30059 5/32" I⌀ PUSHNUT 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 26 | 30064 3/16" x 1" CLEVIS PIN 1 / appliance (sold individually) | CAD $13.00 | -- | |
| 27 | PL65572 AIR CONTROL ROD GUIDE 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 28 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 29 | PL65565 REAR OF PEDESTAL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 30 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 13 / appliance (sold individually) | CAD $2.00 | -- | |
| 31 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 32 | 30418 FINISHING PLUG 3/8" 2 / appliance (sold individually) | CAD $16.00 | -- | |
| 33 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 34 | PL53664 AIR CONTROL COVER 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 35 | SE65956 ASH DRAWER ASSEMBLY 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 36 | PL65577 LEFT OR RIGHT DECORATIVE SIDE PANEL 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 37 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 38 | SE53659 TOP AIR MATE 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 39 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 40 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 41 | AC03095 BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM) 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 42 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 43 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 44 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 45 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 46 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 47 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 48 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 49 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 50 | PL36099 2 1/4" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 51 | PL36028 4 1/2" x 8 1/8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 52 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 53 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | CAD $3.50 | -- | |
| 54 | 21387 TOP AIR DEFLECTOR INSULATION 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 55 | PL65505 TOP AIR DEFLECTOR PROTECTOR 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 56 | PL65514 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $50.00 | -- | |
| 57 | 21388 20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 58 | PL65726 BRUSHED NICKEL OVERLAY 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 59 | 30253 MECHANICAL SCREW 1/4-20 x 5/16" BUTTONHEAD HEX DEEP #5/32 SS 18-8 4 / appliance (sold individually) | CAD $12.00 | -- | |
| 60 | PL65958 ASH LIP 1 / appliance (sold individually) | CAD $25.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
