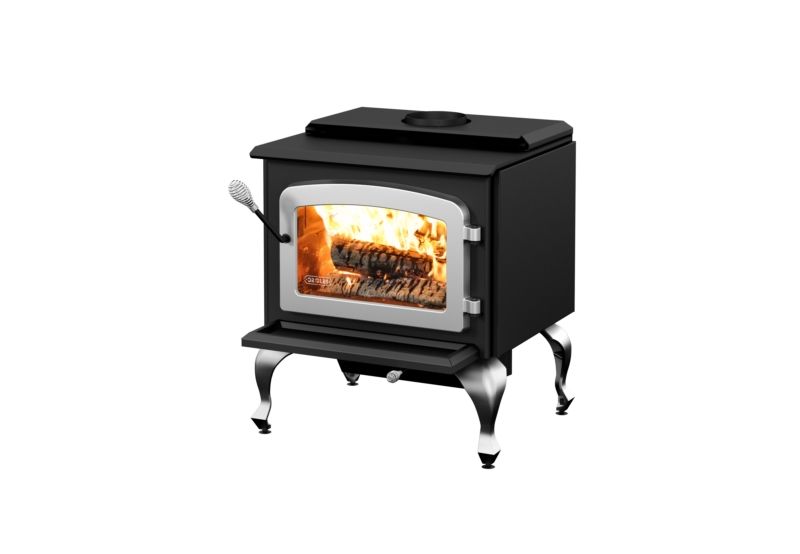

ESCAPE 1800 - NICKEL DOOR & LEGS
DB03113Serial Numbers: 6180 to 6349

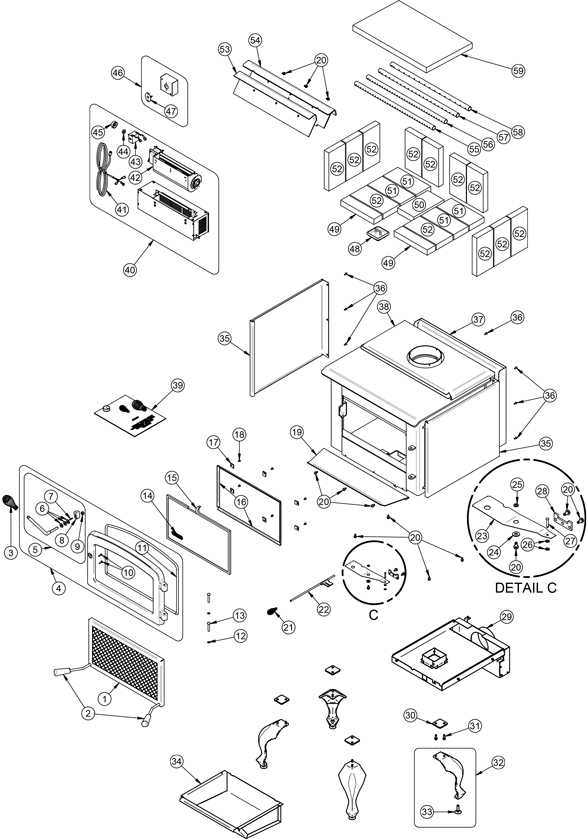

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01315 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | SE24107 REPLACEMENT DOOR WITH GASKET WITHOUT GLASS AND HANDLE 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 5 | AC09167 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 6 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 7 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 8 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 9 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 11 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 12 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 13 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 14 | SE55103 10 3/16" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 15 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 16 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 17 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 18 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 19 | PL65566 ASH LIP 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 20 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 21 | AC07866 1/4" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 22 | SE65561 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $26.00 | -- | |
| 23 | PL65537 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 24 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 25 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 26 | 30059 5/32" I⌀ PUSHNUT 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 27 | 30064 3/16" x 1" CLEVIS PIN 1 / appliance (sold individually) | CAD $13.00 | -- | |
| 28 | PL65572 AIR CONTROL ROD GUIDE 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 29 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 30 | PL65548 LEG SPACER 4 / appliance (sold individually) | CAD $16.00 | -- | |
| 31 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 8 / appliance (sold individually) | CAD $2.00 | -- | |
| 32 | PL24098 BLACK CAST IRON LEG WITH LEVELING BOLT 4 / appliance (sold individually) | CAD $55.00 | -- | |
| 32 | PL24098-01 BRUSH NICKEL CAST IRON LEG 4 / appliance (sold individually) | CAD $270.00 | -- | |
| 33 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 34 | SE53596 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 35 | PL65577 LEFT OR RIGHT DECORATIVE SIDE PANEL 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 36 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 7 / appliance (sold individually) | CAD $2.00 | -- | |
| 37 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 38 | SE53659 TOP AIR MATE 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 39 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 40 | AC03095 BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM) 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 41 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 42 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 43 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 44 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 45 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 47 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 48 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 49 | PL36018 2 1/4" x 8 3/4" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 50 | PL36028 4 1/2" x 8 1/8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 51 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 52 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 12 / appliance (sold individually) | CAD $10.00 | -- | |
| 53 | 21387 TOP AIR DEFLECTOR INSULATION 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 54 | PL65505 TOP AIR DEFLECTOR PROTECTOR 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 55 | PL65514 SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 56 | PL65515 MIDDLE FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 57 | PL65516 MIDDLE REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 58 | PL65517 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 59 | 21388 20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $55.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
