ESCAPE 1800-I
DB03125-2Serial Numbers: 2100 to 3999

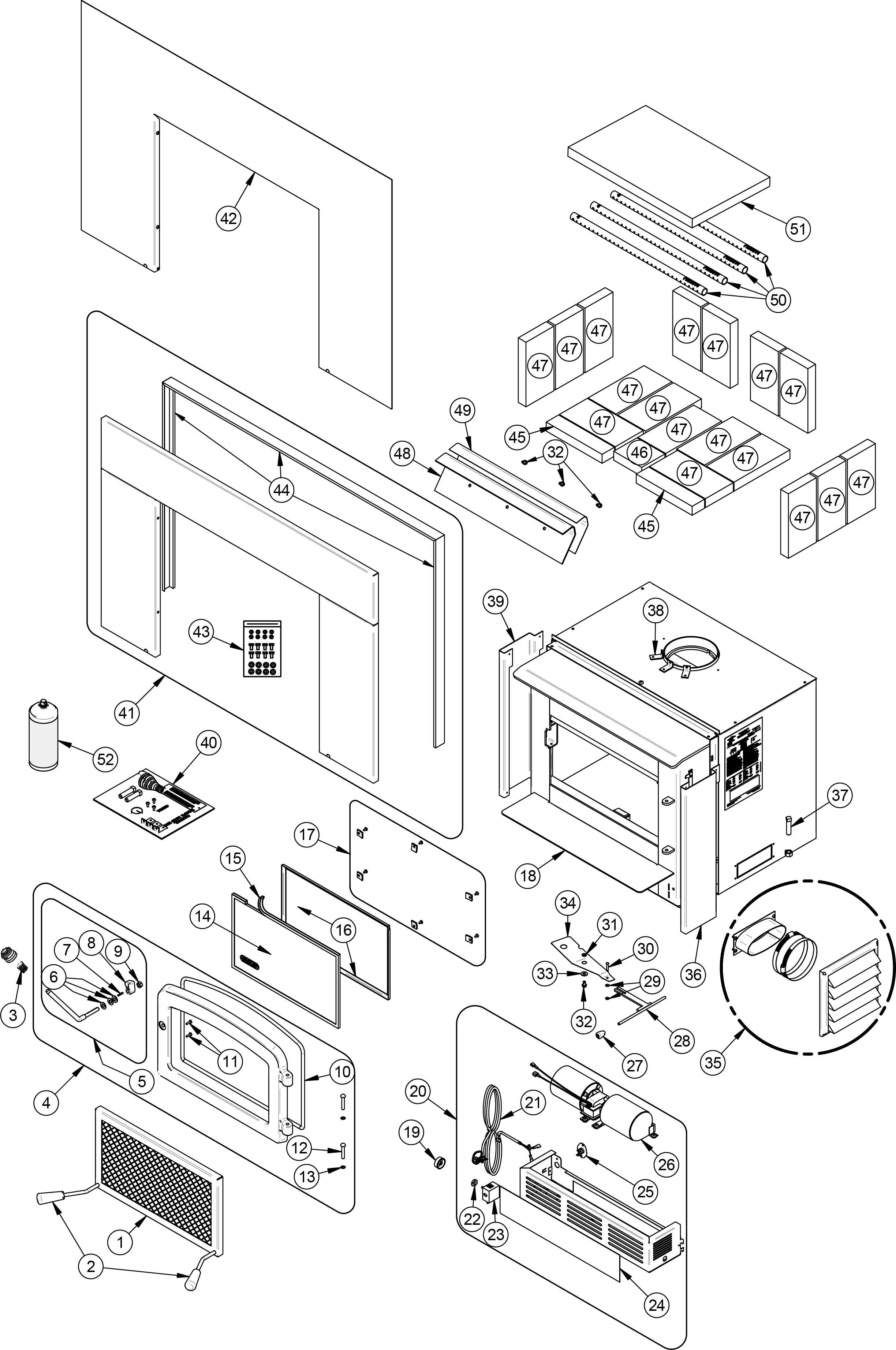

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01315 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | SE24107-02 BLACK CAST IRON DOOR WITH GASKET AND HANDLE 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 5 | AC09167 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 6 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 7 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 8 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 9 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 11 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 12 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 13 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 14 | SE55103 10 3/16" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 15 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 16 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 17 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 18 | PL65583 ASH LIP 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 19 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 20 | SE53904 BLOWER ASSEMBLY 1 / appliance (sold individually) | CAD $300.00 | -- | |
| 21 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 22 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 23 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 23 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 24 | PL65796 FAN SCREEN 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 26 | 44089 DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 27 | 30102 1/4" CAST IRON AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 28 | SE65559 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $26.00 | -- | |
| 29 | 30059 5/32" I⌀ PUSHNUT 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 30 | 30064 3/16" x 1" CLEVIS PIN 1 / appliance (sold individually) | CAD $13.00 | -- | |
| 31 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 32 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 33 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 34 | PL65579 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 35 | AC01298 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 36 | PL53722 RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 37 | 30337 SQUARE HEAD SET SCREW 1/2-13 x 1-3/4" 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 38 | PL34052 LINER FIXATION BRACKET 3 / appliance (sold individually) | CAD $5.00 | -- | |
| 39 | PL53723 LEFT DECORATIVE PANEL 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 40 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 41 | AC03375 LARGE FACEPLATE 32" x 50" WITH NICKEL TRIM KIT 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 41 | AC03370 REGULAR FACEPLATE 29" x 44" WITH NICKEL TRIM KIT 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 42 | AC01357 32" x 50" CUTTABLE FACEPLATE (18 GA) 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 43 | SE15097 FACEPLATE HARDWARE KIT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 44 | OA10123 BRUSHED NICKEL FACEPLATE TRIMS (29" X 44") 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 44 | OA10129 BRUSHED NICKEL FACEPLATE TRIMS (32" x 50") 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 45 | PL36056 2" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 46 | PL36236 4 1/2" x 3 3/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 47 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | CAD $10.00 | -- | |
| 48 | 21387 TOP AIR DEFLECTOR INSULATION 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 49 | PL65505 TOP AIR DEFLECTOR PROTECTOR 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 50 | PL65514 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $50.00 | -- | |
| 51 | 21388 20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 52 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 53 | PL36636 4 1/4" x 9" x 1 1/4" REFRACTORY BRICK HD 3 / appliance (sold individually) | CAD $10.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
