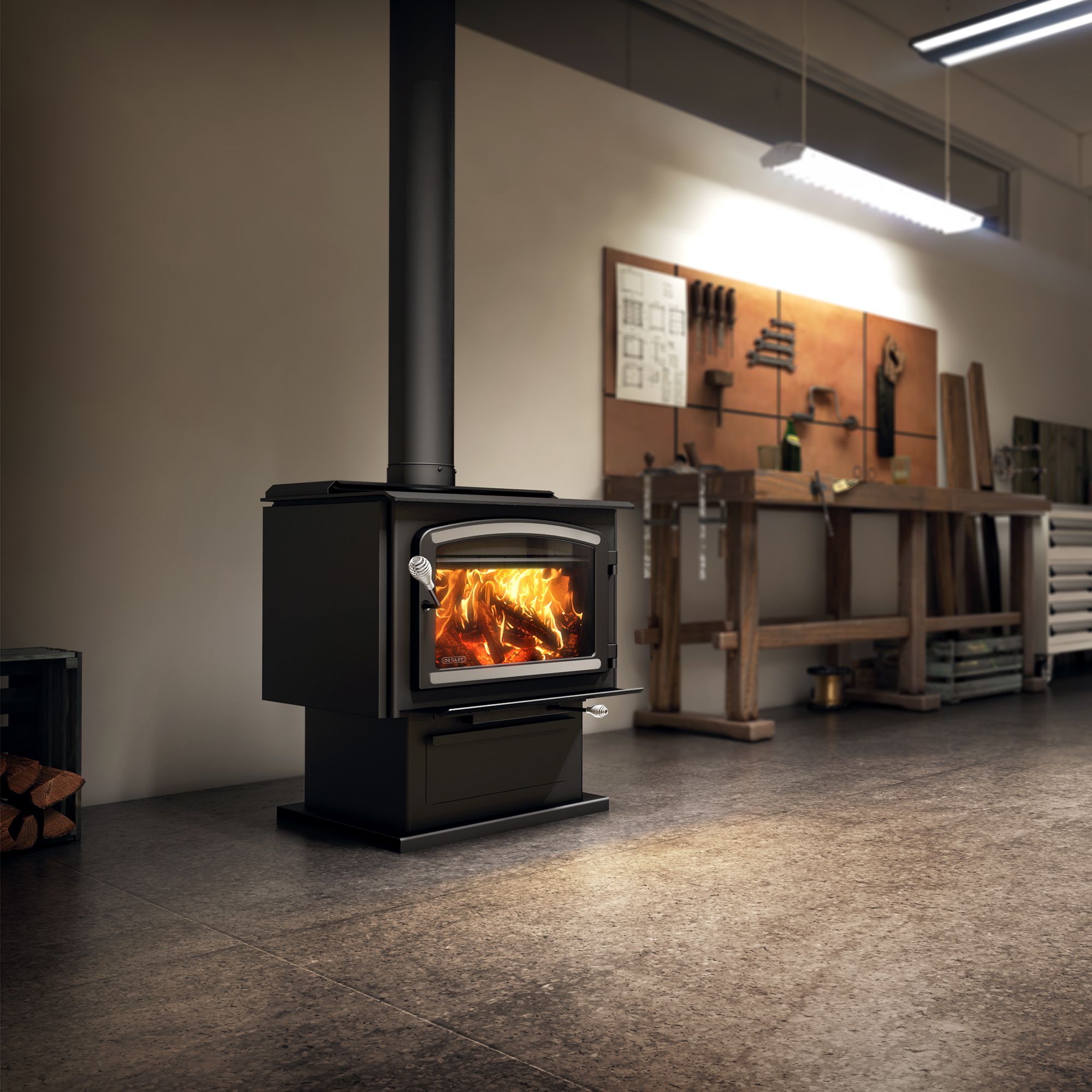

ESCAPE 2100 - BRUSHED NICKEL TRIM
DB03131201 and more

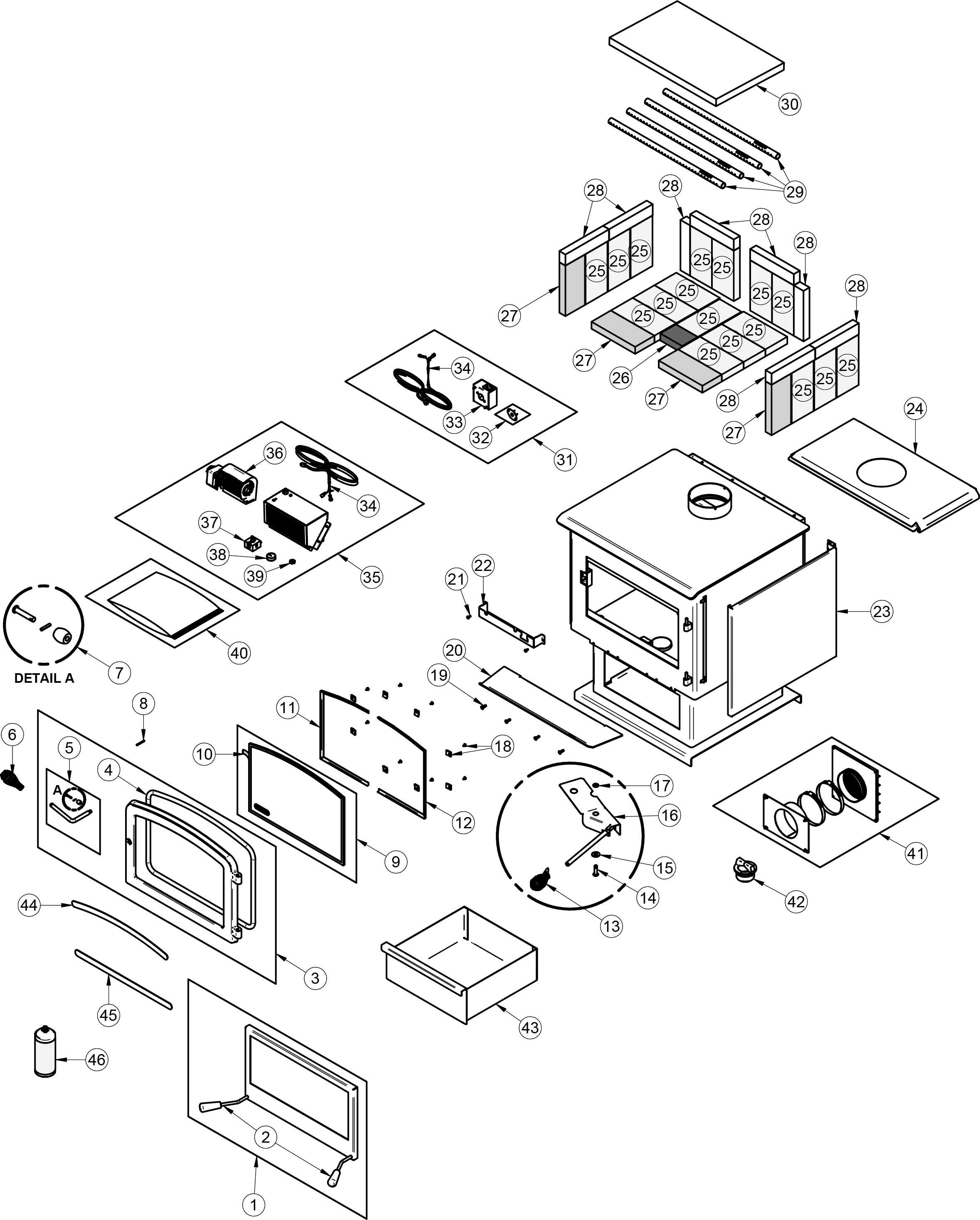

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01281 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | SE24325 DROLET DOOR ASSEMBLY 3.5 SERIES 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 4 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 5 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 6 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 7 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | SE70903 19 7/16"W x 12"H x 13 3/16"H REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $210.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | PL70833 LEFT GLASS FRAME 1 / appliance (sold individually) | CAD $46.00 | -- | |
| 12 | PL70832 RIGHT GLASS FRAME 1 / appliance (sold individually) | CAD $46.00 | -- | |
| 13 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 14 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 15 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 16 | SE70904 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 17 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 18 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 19 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 4 / appliance (sold individually) | CAD $2.00 | -- | |
| 20 | PL70836 ASH SHELF 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 21 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 22 | PL70774 AIR CONTROL COVER 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 23 | PL70835 DECORATIVE PANEL 2 / appliance (sold individually) | CAD $120.00 | -- | |
| 24 | SE70840 AIR MATE ASSEMBLY 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 25 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 17 / appliance (sold individually) | CAD $10.00 | -- | |
| 26 | PL36760 3 1/4" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 27 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 28 | PL36056 2" x 9" x 1 1/4" REFRACTORY BRICK 8 / appliance (sold individually) | CAD $10.00 | -- | |
| 29 | PL70864 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $50.00 | -- | |
| 30 | 21585 22" x 14" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 31 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 32 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 33 | PL05530-02 THERMODISC BOX (COVER) 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 34 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 35 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 36 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 37 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 38 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 39 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 40 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 41 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 42 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 43 | PL70838 ASH DRAWER 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 44 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 45 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 46 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 0 | SE74167 DOOR HINGE REPLACEMENT KIT / appliance (sold individually) | CAD $43.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
