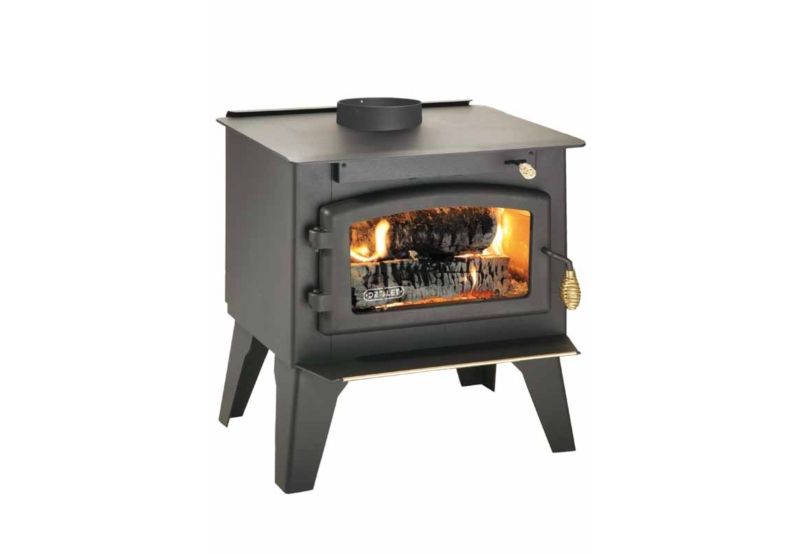

EASTWOOD 1500
DB03150Serial Numbers: 100 to 950

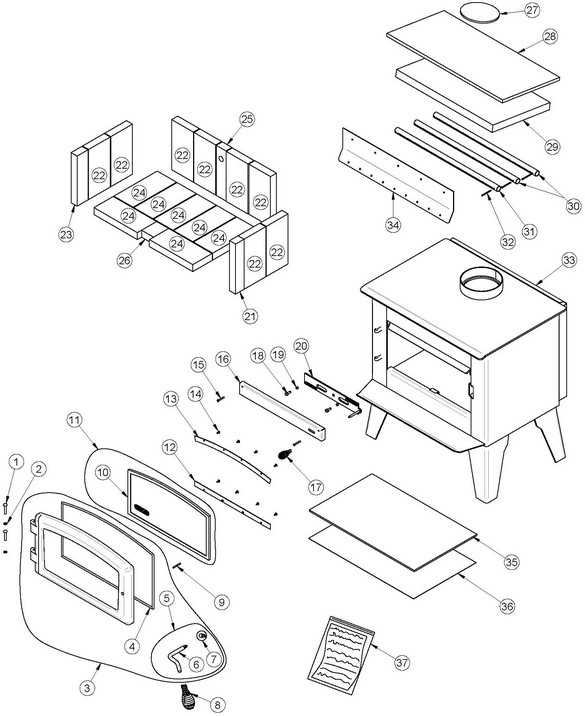

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 2 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 3 | SE24085 DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 4 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 5 | AC09165 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 6 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 7 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 8 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 9 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | SE08537-10 7 7/8" x 16 3/4" x 8 25/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 12 | PL08537-05 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 13 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 14 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 15 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 16 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 17 | AC07864 1/4" BRASS LONG COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 18 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 19 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 20 | SE55013 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 21 | PL36017 1 3/4" x 8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 22 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 9 / appliance (sold individually) | CAD $5.50 | -- | |
| 23 | PL36021 2 1/8" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 24 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 7 / appliance (sold individually) | CAD $10.00 | -- | |
| 25 | 21200 9" x 2" x 1 1/4" REAR BRICK WITH HOLE 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 26 | VP00006 2" x 3" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 27 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 28 | 21142 BAFFLE INSULATION 12" x 24" x 1/2" 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 29 | 21214 20" x 12" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 30 | PL57276 SECONDARY AIR TUBE 2 / appliance (sold individually) | CAD $75.00 | -- | |
| 31 | PL57275 SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 32 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 33 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 34 | SE55004 DEFLECTOR REPAIR KIT 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 35 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 36 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 37 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
