EASTWOOD 1900
DB03170Serial Numbers: 100 to 783

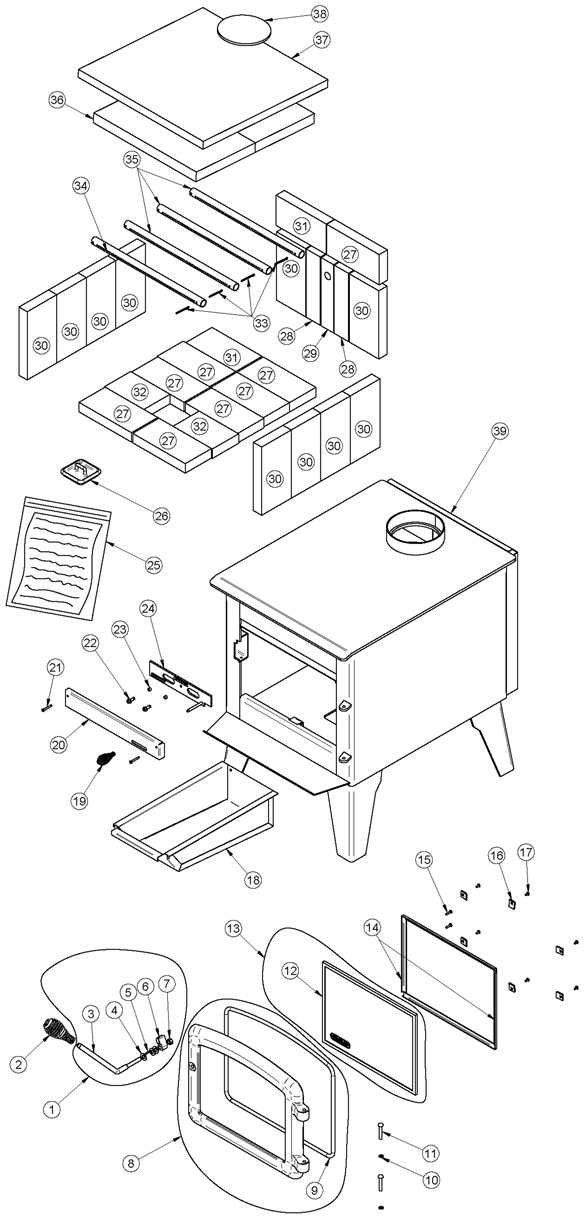

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC09171 REPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 2 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 3 | PL53951 DOOR HANDLE SHAFT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 4 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 5 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 6 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 7 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 9 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 10 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 11 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 12 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 13 | SE55530 10 1/2" x 14 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 14 | PL55531 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $34.00 | -- | |
| 15 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 16 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 17 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 18 | SE55541 ASH DRAWER 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 19 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 20 | PL55502 AIR CONTROL COVER 1 / appliance (sold individually) | CAD $26.00 | -- | |
| 21 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 22 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 23 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 24 | SE55501 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 25 | SE45284 EASTWOOD 1900 INSTRUCTION MANUAL KIT 1 / appliance (sold individually) | -- | -- | |
| 26 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 27 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $3.50 | -- | |
| 28 | PL36021 2 1/8" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 29 | 21200 9" x 2" x 1 1/4" REAR BRICK WITH HOLE 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 30 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 18 / appliance (sold individually) | CAD $10.00 | -- | |
| 32 | PL36057 4" x 5 3/4" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 33 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 34 | PL55521 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 35 | PL55520 MIDDLE AND REAR SECONDARY AIR TUBE 3 / appliance (sold individually) | CAD $75.00 | -- | |
| 36 | 21213 VERMICULITE BAFFLE 15 5/8" x 9" x 1 1/4" 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 37 | 21121 18 3/4" x 13 1/2" x 1" BAFFLE INSULATION 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 38 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 39 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
