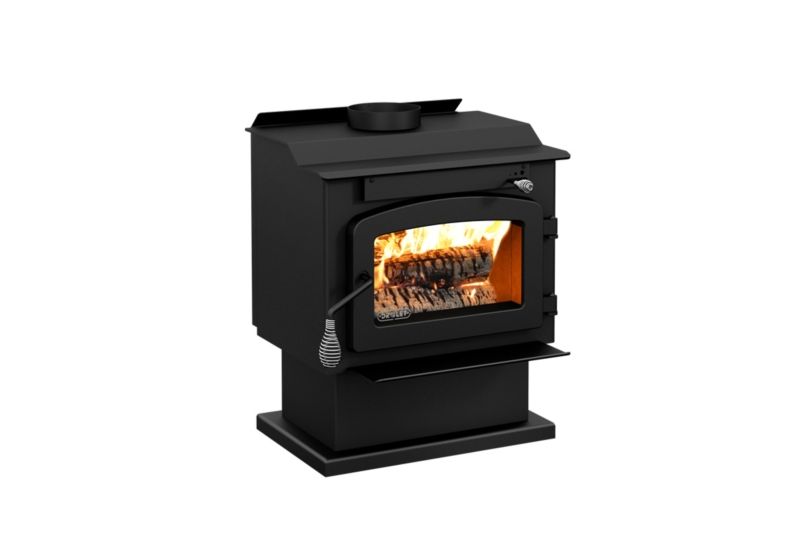

PYROPAK
DB03180Serial Numbers: 13866 to 18168

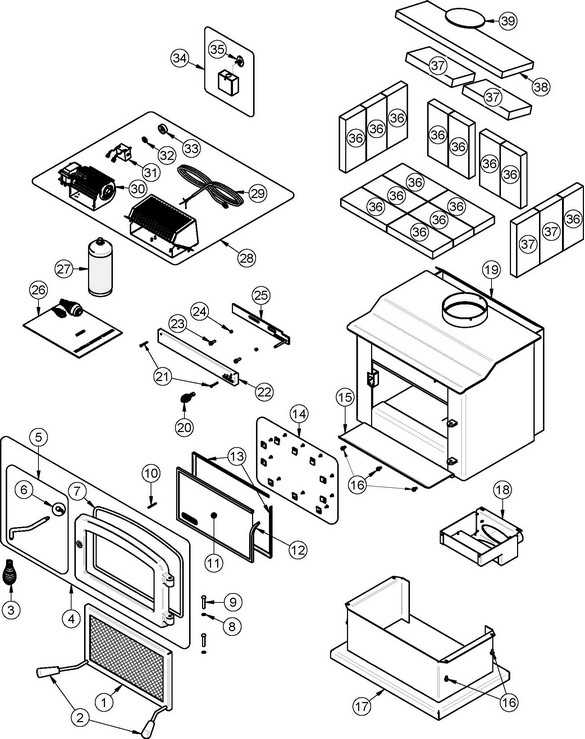

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01318 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | SE24112 REPLACEMENT DOOR WITH GASKET AND HANDLE WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 5 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 6 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 7 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 8 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 9 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 11 | SE63002 8 3/4" x 14 3/4" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 12 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 13 | PL54583 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 14 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 15 | PL63249 ASH LIP 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 16 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 7 / appliance (sold individually) | CAD $1.00 | -- | |
| 17 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 18 | AC01331 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 19 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 20 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 21 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 22 | PL63324 AIR CONTROL COVER 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 23 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 24 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 25 | SE63323 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 26 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 27 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 28 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 29 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 30 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 31 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 32 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 33 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 34 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 35 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 36 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | CAD $10.00 | -- | |
| 37 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 38 | 21386 BACK INSULATION BAFFLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 39 | PL63339 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | CAD $15.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
