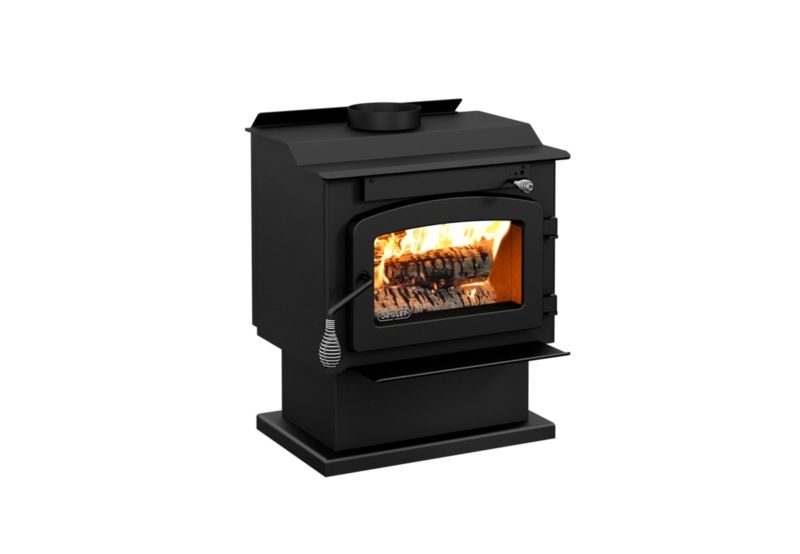

PYROPAK
DB03180-1Serial Numbers: 100 to 9445

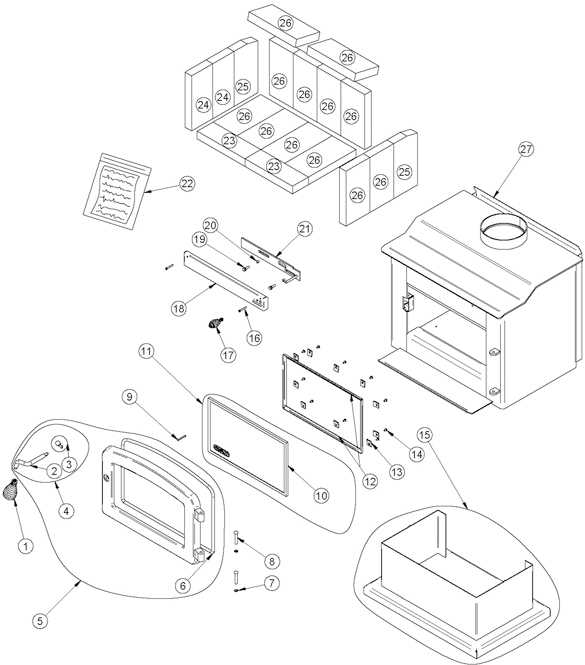

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | PL08535-01 HANDLE SHAFT 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 3 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 4 | AC09155 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 5 | SE24112 REPLACEMENT DOOR WITH GASKET AND HANDLE WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 6 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 7 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 8 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | SE63002 8 3/4" x 14 3/4" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 12 | PL54583 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 13 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 14 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 10 / appliance (sold individually) | CAD $1.00 | -- | |
| 15 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 16 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 17 | AC07863 1/4" CHROME LONG COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 18 | PL63123 AIR CONTROL COVER 1 / appliance (sold individually) | CAD $26.00 | -- | |
| 19 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 20 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 21 | SE63017 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 22 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 23 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 24 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 25 | PL36019 4 1/2" x 9" x 8 3/8" x 1 7/8" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 26 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 18 / appliance (sold individually) | CAD $10.00 | -- | |
| 27 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- |

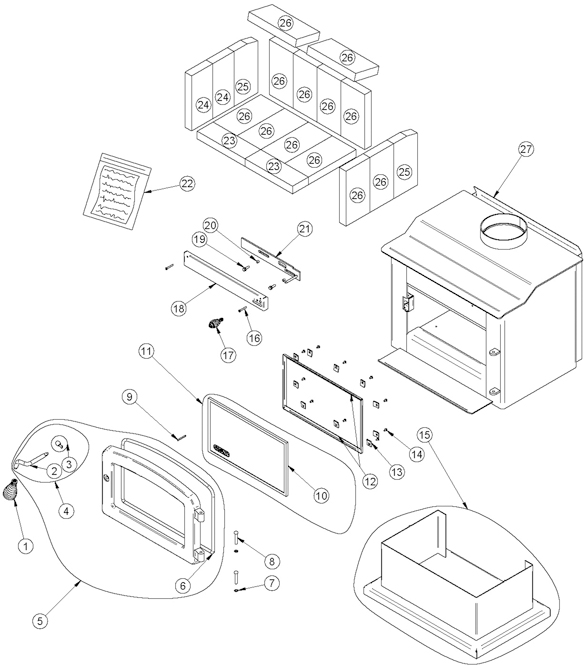

The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
