ROCKET
DB03185-1Serial Numbers: 100 to 2131

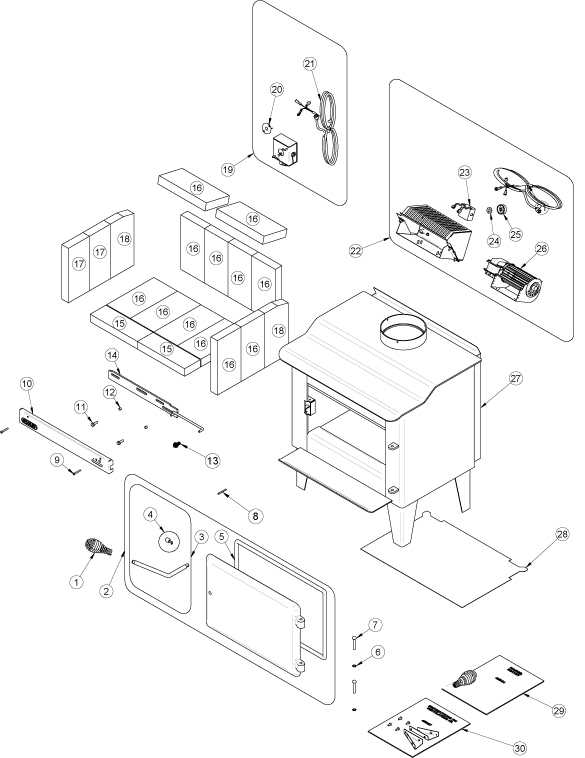

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | SE24231 DOOR ASSEMBLY WITH HANDLE AND GASKET ROCKET 1 / appliance (sold individually) | CAD $320.00 | -- | |
| 3 | AC09156 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 4 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 5 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 6 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 7 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 10 | PL63146 AIR INTAKE COVER 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 11 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 12 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 13 | AC07865 1/4" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 14 | SE63177 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 15 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 16 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | CAD $10.00 | -- | |
| 17 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 18 | PL36019 4 1/2" x 9" x 8 3/8" x 1 7/8" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 19 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 20 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 21 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 22 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 23 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 24 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 25 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 26 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 27 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 28 | PL63118 BOTTOM HEAT SHIELD 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 29 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 30 | SE06748 SUPPORT FOR THE BLOWER AC02050 1 / appliance (sold individually) | CAD $35.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
