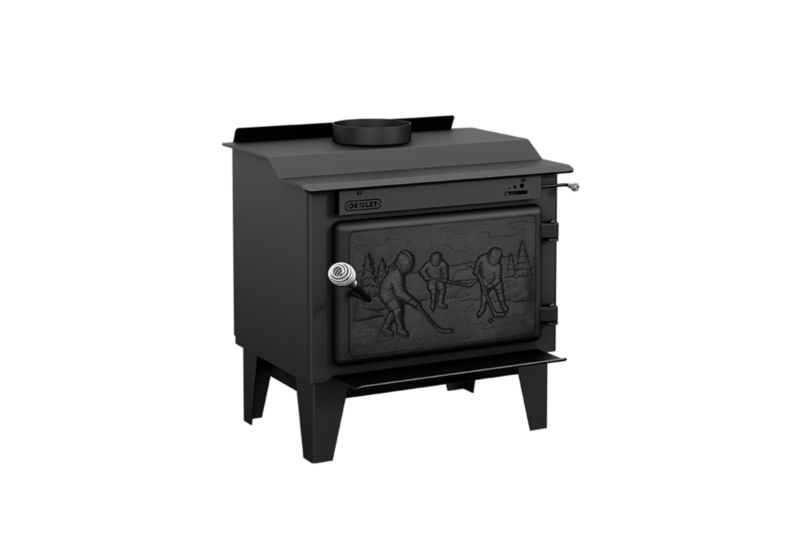

ROCKET

DB03185Serial Numbers: 2333 to 2667

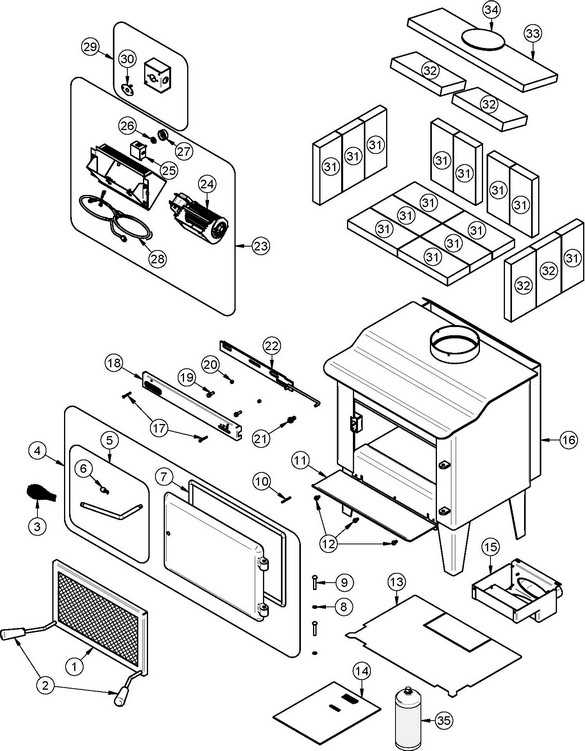

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC01318
RIGID FIRESCREEN
1 / appliance (sold individually)
CAD $140.00--
230569
ROUND WOODEN HANDLE BLACK
2 / appliance (sold individually)
CAD $15.00--
3AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
CAD $8.00--
4SE24231
DOOR ASSEMBLY WITH HANDLE AND GASKET ROCKET
1 / appliance (sold individually)
CAD $320.00--
5AC09156
HANDLE &LATCH KIT
1 / appliance (sold individually)
CAD $55.00--
6AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
CAD $30.00--
7AC06900
1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT
1 / appliance (sold individually)
CAD $17.00--
830055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
CAD $5.00--
930169
DOOR HINGE PIN 5/16"O x 1 3/4" L
2 / appliance (sold individually)
CAD $2.00--
1030101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
CAD $2.00--
11PL63249
ASH LIP
1 / appliance (sold individually)
CAD $44.00--
1230060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
3 / appliance (sold individually)
CAD $1.00--
13PL63335
BOTTOM HEAT SHIELD
1 / appliance (sold individually)
CAD $34.00--
1499998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
15AC01331
5"Ø FRESH AIR INTAKE KIT
1 / appliance (sold individually)
CAD $160.00--
1699999
BUILD TO ORDER
1 / appliance (sold individually)
CAD $14.00--
1730125
MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC
2 / appliance (sold individually)
CAD $1.00--
18PL63146
AIR INTAKE COVER
1 / appliance (sold individually)
CAD $34.00--
1930094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
2 / appliance (sold individually)
CAD $2.00--
2030428
BUSHING
2 / appliance (sold individually)
CAD $10.00--
21AC07865
1/4" CHROME COIL HANDLE
1 / appliance (sold individually)
CAD $7.00--
22SE63179
AIR CONTROL DAMPER
1 / appliance (sold individually)
CAD $39.00--
23AC02050
BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM
1 / appliance (sold individually)
CAD $180.00--
2444073
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM
1 / appliance (sold individually)
CAD $200.00--
2544080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
CAD $55.00--
2644087
RHEOSTAT NUT
1 / appliance (sold individually)
CAD $5.00--
2744085
RHEOSTAT KNOB
1 / appliance (sold individually)
CAD $8.00--
2860013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
CAD $20.00--
3044028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
CAD $25.00--
3129015
4" x 9" x 1 1/4" REFRACTORY BRICK
14 / appliance (sold individually)
CAD $10.00--
3229010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
CAD $3.50--
3321386
BACK INSULATION BAFFLE
1 / appliance (sold individually)
CAD $20.00--
34PL63339
BAFFLE INSULATION WEIGHT
1 / appliance (sold individually)
CAD $15.00--
35AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
CAD $19.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
