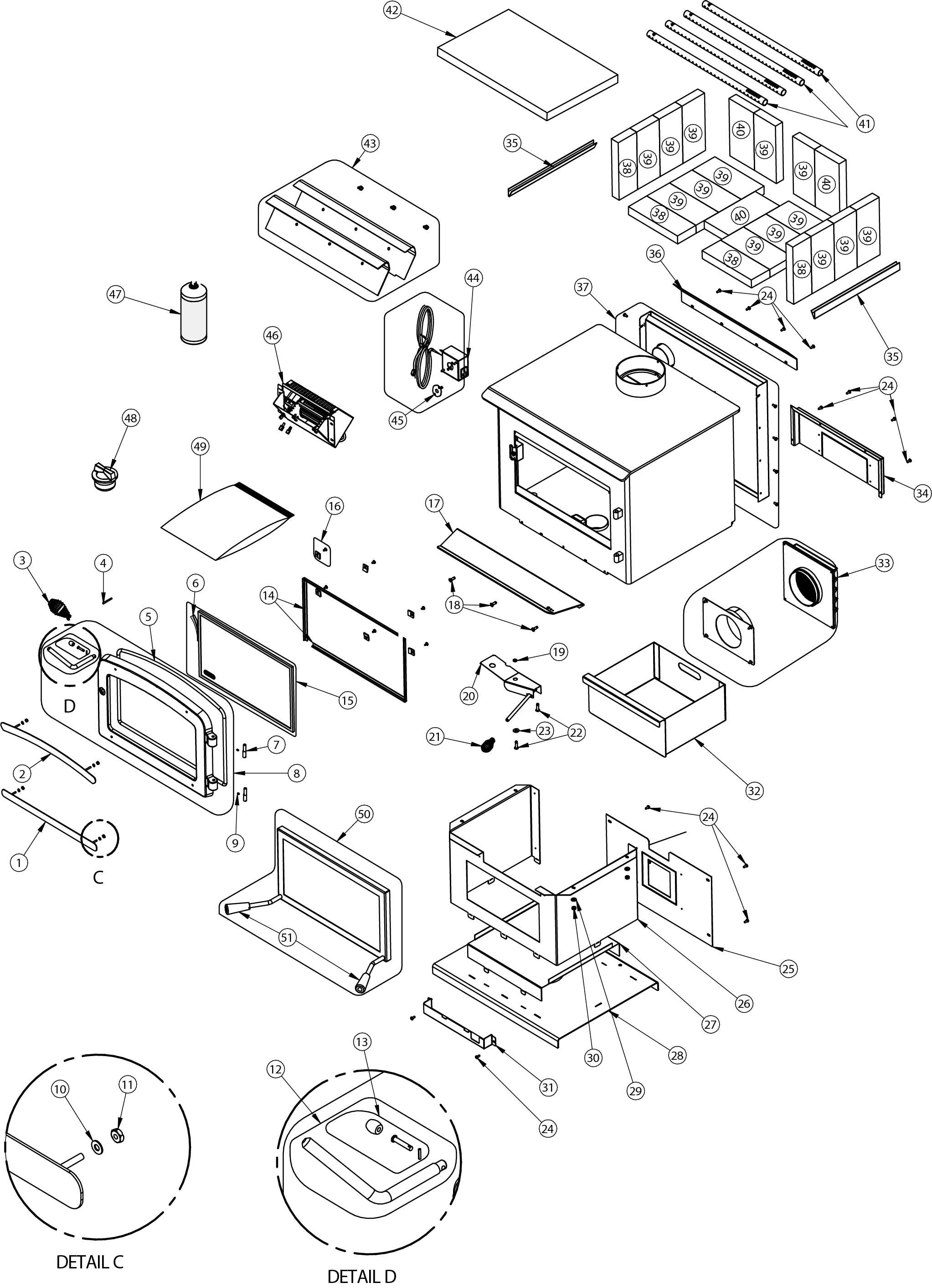

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | PL55101 DECORATIVE BOTTOM DOOR TRIM 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 2 | PL55102 BRUSHED NICKEL DECORATIVE TOP DOOR TRIM 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 5 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 6 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 7 | 30579 ADJUSTABLE HINGE PIN 3/8" - 5/16"Ø x 1 63/64"L 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 8 | SE24107-09 HERITAGE DOOR ASSEMBLY 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 9 | 30117 BLACK SET SCREW #10-32 x 3/16" 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 10 | 30208 WASHER ID 5/32" x OD 7/16" 4 / appliance (sold individually) | CAD $13.00 | -- | |
| 11 | 30417 BLACK HEX NUT #8-32 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 12 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 13 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 14 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 15 | SE55103 10 3/16" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 16 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 17 | PL74079 ASH SHELF 1 / appliance (sold individually) | CAD $42.00 | -- | |
| 18 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 19 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 20 | SE65305 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 21 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 22 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 23 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 24 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 14 / appliance (sold individually) | CAD $12.00 | -- | |
| 25 | PL65542 BASE COVER 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 26 | PL74075 PEDESTAL 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 27 | PL74086 ASH PAN GUIDE 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 28 | PL74084 BASEMENT 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 29 | 30185 BLACK WASHER 17/64" AA TYPE 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 30 | 30100 BLACK HEX NUT 1/4 - 20 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 31 | PL74085 DÉCORATIVE DASH 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 32 | PL65960 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 33 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 34 | PL70704 BLOWER ADAPTER 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 35 | PL65127 FLOORED BRICK RETAINER 2 / appliance (sold individually) | CAD $26.00 | -- | |
| 36 | PL74142 AIR DEFLECTOR 1 / appliance (sold individually) | CAD $28.00 | -- | |
| 37 | SE65353 BACK HEAT SHIELD ASSEMBLY 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 38 | 29007 3 1/4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 39 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | CAD $10.00 | -- | |
| 40 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- | |
| 41 | PL65514 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $50.00 | -- | |
| 42 | 21388 20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 43 | SE65505 TOP AIR DEFLECTOR PROTECTOR KIT 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 44 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 45 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 46 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 47 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 48 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 49 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 50 | AC01315 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 51 | 30898 BLACK ROUND WOODEN HANDLE 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 0 | SE74167 DOOR HINGE REPLACEMENT KIT / appliance (sold individually) | CAD $43.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
