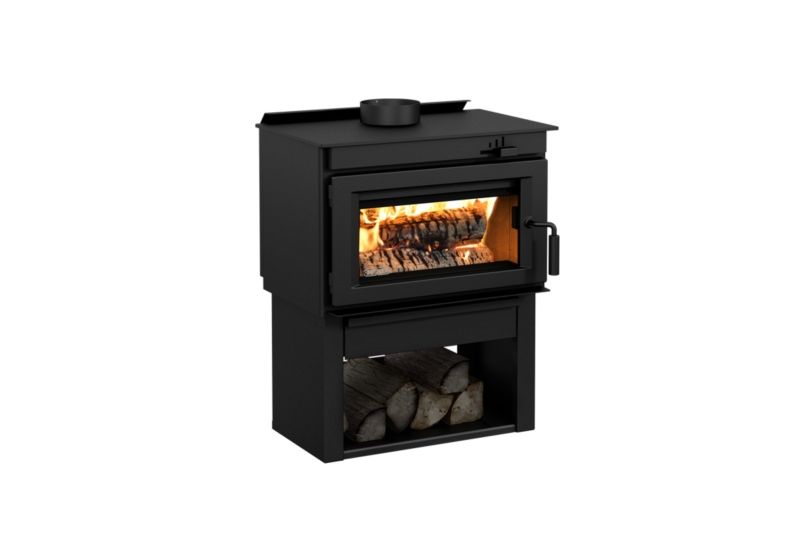

DECO
DB03200Serial Numbers: 100 to 2404

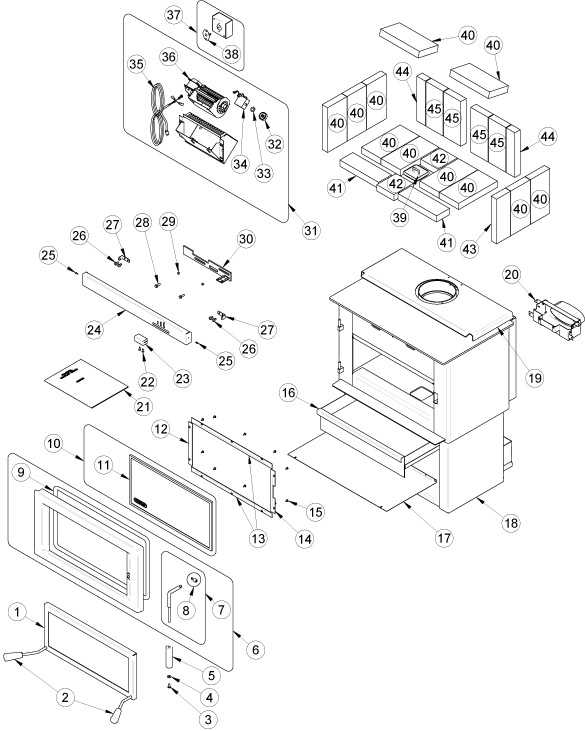

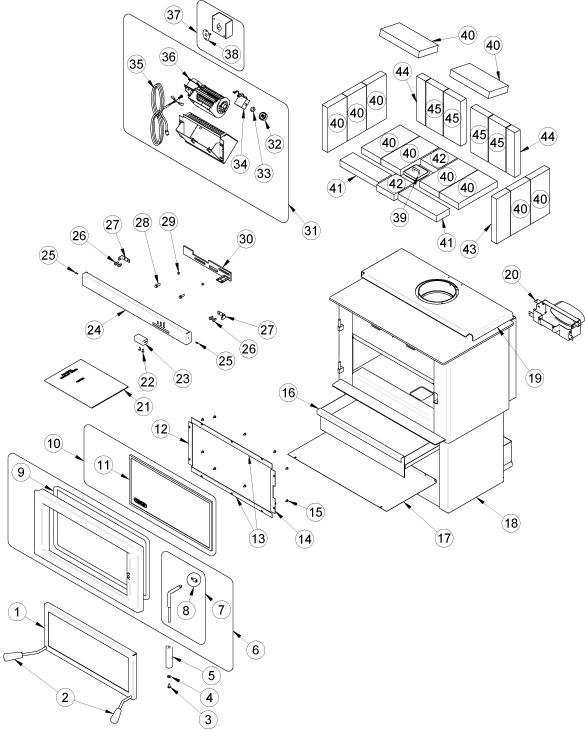

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | 30025 BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 4 | 30185 BLACK WASHER 17/64" AA TYPE 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 5 | 30742 DRILLED BLACK WOODEN DOOR HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 6 | SE24235 CAST IRON DOOR WITH GASKET AND HANDLE 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 7 | AC09196 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 8 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 9 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 10 | SE65275 9 13/16" x 19" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 11 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 12 | PL65272 LEFT GLASS RETAINER 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 13 | PL65270 TOP AND BOTTOM GLASS RETAINER 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 14 | PL65271 RIGHT GLASS RETAINER 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 15 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 10 / appliance (sold individually) | CAD $1.00 | -- | |
| 16 | SE65261 ASH DRAWER 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 17 | PL65290 BOTTOM HEAT SHIELD 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 18 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 19 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 20 | AC01334 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 21 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 22 | 30129 METAL SCREW #10 x 1/2" PAN QUADREX ZINC "A" TYPE 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 23 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 24 | PL65256 AIR DAMPER COVER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 25 | 30138 METAL SCREW #6 - 3/8" QUADREX "A" TYPE BLACK 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 26 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 27 | PL65277 AIR DAMPER COVER SUPPORT 2 / appliance (sold individually) | CAD $19.00 | -- | |
| 28 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 29 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 30 | SE65253 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 31 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 32 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 33 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 34 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 35 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 36 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 38 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 39 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 40 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 11 / appliance (sold individually) | CAD $10.00 | -- | |
| 41 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 42 | PL36084 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5) 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 43 | PL36060 3 1/2" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 44 | PL36021 2 1/8" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 45 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
