SPARK
DB03400-1Serial Numbers: 97 to 549

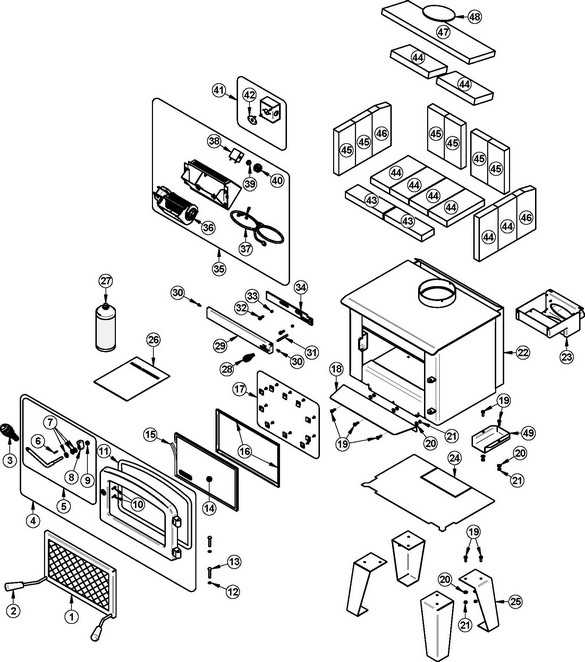

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC01318 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 2 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | SE54580 BLACK CAST IRON DOOR 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 5 | AC09171 REPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 6 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 7 | 30254 BLACK WASHER ID 13/32" x OD 13/16" 5 / appliance (sold individually) | CAD $1.00 | -- | |
| 8 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 9 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 11 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 12 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 13 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 14 | SE63002 8 3/4" x 14 3/4" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 15 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 16 | PL54583 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 17 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 18 | PL63084 ASH LIP 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 19 | 30017 BLACK MECHANICAL SCREW 1/4-20 x 3/4" PAN QUADREX ZINC 13 / appliance (sold individually) | CAD $1.00 | -- | |
| 20 | 30185 BLACK WASHER 17/64" AA TYPE 13 / appliance (sold individually) | CAD $1.00 | -- | |
| 21 | 30100 BLACK HEX NUT 1/4 - 20 13 / appliance (sold individually) | CAD $1.00 | -- | |
| 22 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 23 | AC01331 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 24 | PL63335 BOTTOM HEAT SHIELD 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 25 | SE63085 LEGS ASSEMBLY 4 / appliance (sold individually) | CAD $55.00 | -- | |
| 26 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 27 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 28 | 30100N COIL HANDLE 1/4" NICKEL 1 / appliance (sold individually) | CAD $23.00 | -- | |
| 29 | PL63198 AIR CONTROL COVER 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 30 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 31 | 30863 AIR CONTROL ROD 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 32 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 33 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 34 | SE63197 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 35 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 36 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 37 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 38 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 39 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 40 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 41 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 42 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 43 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 44 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 8 / appliance (sold individually) | CAD $10.00 | -- | |
| 45 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 6 / appliance (sold individually) | CAD $10.00 | -- | |
| 46 | PL36019 4 1/2" x 9" x 8 3/8" x 1 7/8" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 47 | 21386 BACK INSULATION BAFFLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 48 | PL63339 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 49 | PL63072 CHANEL 1 / appliance (sold individually) | CAD $26.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
