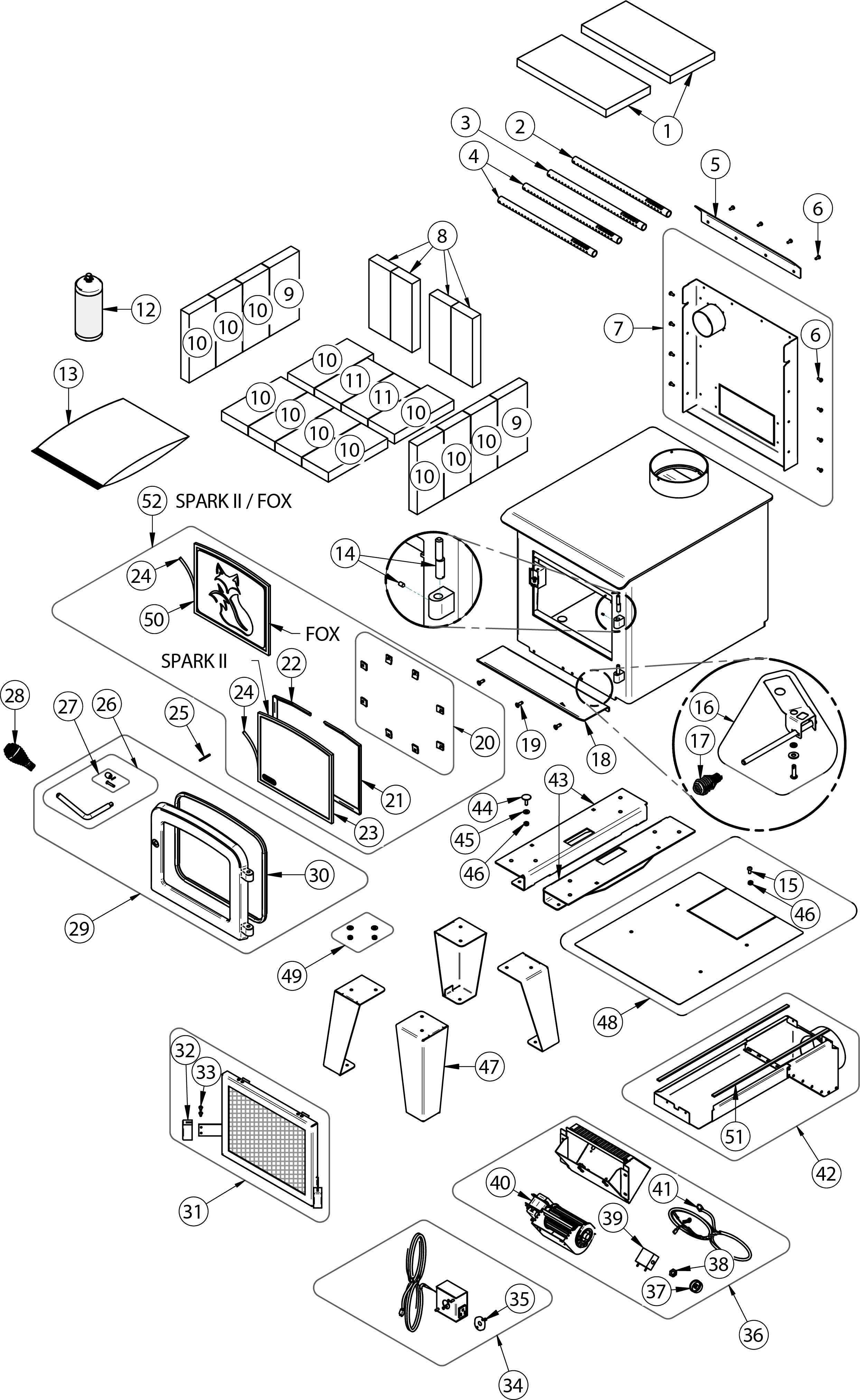

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 21622 13 7/16" x 6 3/4" x 1" VERMICULITE BAFFLE 2 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | PL66833 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 3 | PL66834 MIDDLE REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 4 | PL66835 MIDDLE AND FRONT SECONDARY AIR TUBE 2 / appliance (sold individually) | CAD $29.00 | -- | |
| 5 | PL74262 EXHAUST DEFLECTOR 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 6 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 12 / appliance (sold individually) | CAD $12.00 | -- | |
| 7 | SE74262 BACK HEAT SHIELD ASSEMBLY 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 8 | 29007 3 1/4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 9 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 10 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | CAD $10.00 | -- | |
| 11 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $3.50 | -- | |
| 12 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 13 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 14 | SE74167 DOOR HINGE REPLACEMENT KIT 1 / appliance (sold individually) | CAD $43.00 | -- | |
| 15 | 30025 BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 16 | SE74355 ASSEMBLY AIR CONTROL HATCH KIT 1 / appliance (sold individually) | CAD $46.00 | -- | |
| 17 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 18 | PL74265 ASH TRAY 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 19 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 20 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 21 | PL74317 RIGHT GLASS FRAME 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 22 | PL74318 LEFT GLASS FRAME 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 23 | SE74251 11 3/8"W x 9 1/2"H GLASS WITH GASKET 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 24 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 25 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 26 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 27 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 28 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 29 | SE24349 1.4 SERIE CAST IRON DOOR ASSEMBLY 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 30 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 31 | AC01420 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 32 | PL06728 AIR CONTROL HANDLE 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 33 | 30129 METAL SCREW #10 x 1/2" PAN QUADREX ZINC "A" TYPE 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 34 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 35 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 36 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 37 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 38 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 39 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 40 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 41 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 42 | AC01421 5"Ø FRESH AIR INTAKE KIT FOR WOOD STOVE 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 43 | PL74323 LEG SUPPORT 2 / appliance (sold individually) | CAD $80.00 | -- | |
| 44 | 30536 LEVELING BOLT 1/4 - 20 x 1" 4 / appliance (sold individually) | CAD $5.00 | -- | |
| 45 | 30185 BLACK WASHER 17/64" AA TYPE 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 46 | 30100 BLACK HEX NUT 1/4 - 20 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 47 | PL74328 LEG 4 / appliance (sold individually) | CAD $49.00 | -- | |
| 48 | SE74357 BOTTOM HEAT SHIELD KIT 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 49 | 30141 HARDWARE BAG FOR LEGS 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 50 | SE74358 1.4 SERIE DOOR PLATE ASSEMBLY 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 51 | AC06810 1/8" x 3/8" x 6' SELF-ADHESIVE BLACK GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 52 | SE74364 SPARK II GLASS AND MOLDING KIT 1 / appliance (sold individually) | CAD $170.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
