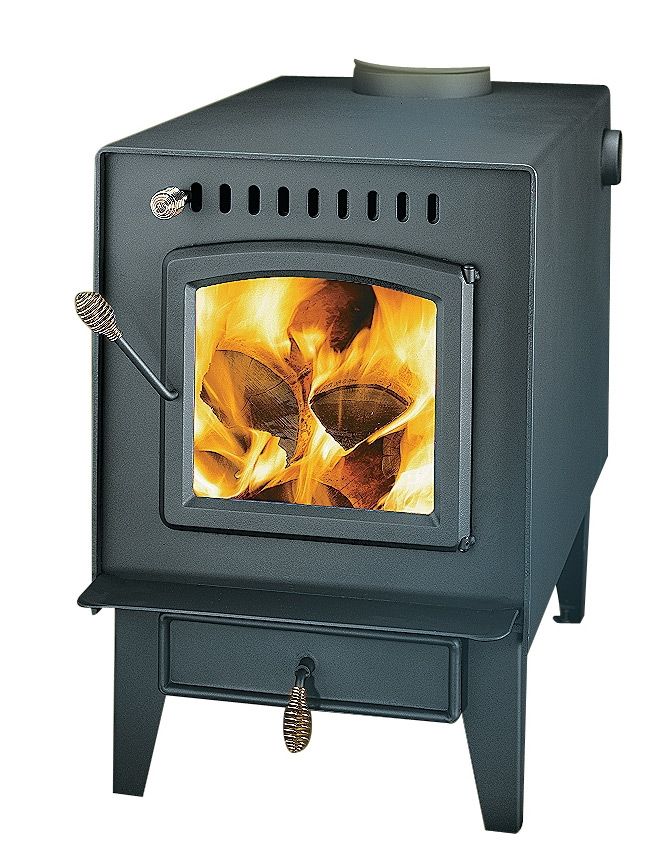

BARON 2000SP
DB03520--

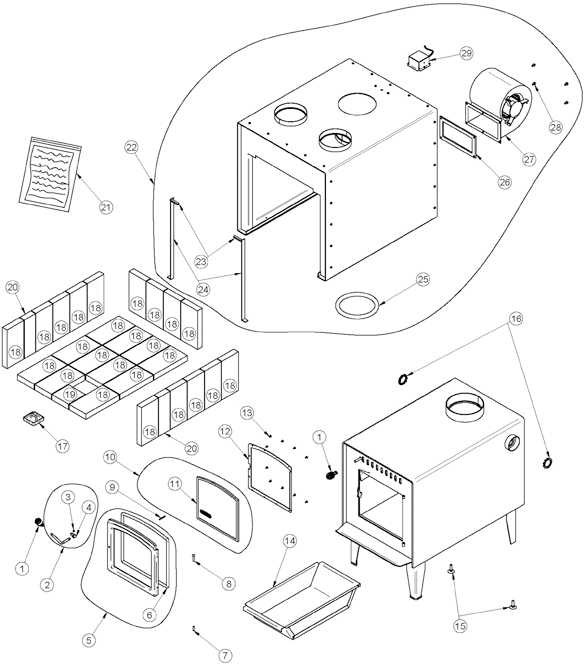

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 0 | AC05520 BLOWER WITH VARIABLE SPEED CONTROL (UP TO 100 CFM) 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 1 | 30429 3/8" NICKEL COIL HANDLE 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 2 | AC09181 REPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 3 | 30095 SET SCREW HEX 1/4-20 X 1/4" 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 4 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 6 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 8 | 30172 DOOR PIN 1/4"Ø x 1-1/4"L 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 9 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | SE50260 9 5/8" x 11" x 10 7/16" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 11 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 12 | PL47004 GLASS RETAINER FRAME 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 13 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 10 / appliance (sold individually) | CAD $1.00 | -- | |
| 14 | SE30055 ASH DRAWER 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 15 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 2 / appliance (sold individually) | CAD $8.00 | -- | |
| 16 | 44050 2" AIR OUTLET PLUG 2 / appliance (sold individually) | CAD $26.00 | -- | |
| 17 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 18 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 27 / appliance (sold individually) | CAD $10.00 | -- | |
| 19 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 20 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 21 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 22 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 23 | 40006 1/4" x 3/8" x 1' BLACK SELF-ADHESIVE GASKET 1 / appliance (sold individually) | CAD $22.00 | -- | |
| 24 | 40007 1" x 1/8" x 1' SELF-ADHESIVE GASKET 4 / appliance (sold individually) | CAD $16.00 | -- | |
| 25 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 26 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 27 | 51022 465 CFM BLOWER FOR BARON AIR JACKET 55-002-015 1 / appliance (sold individually) | CAD $350.00 | -- | |
| 28 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 29 | SE50291 THERMODISC WITH HOUSING FOR BARON AIR JACKET 1 / appliance (sold individually) | CAD $75.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
