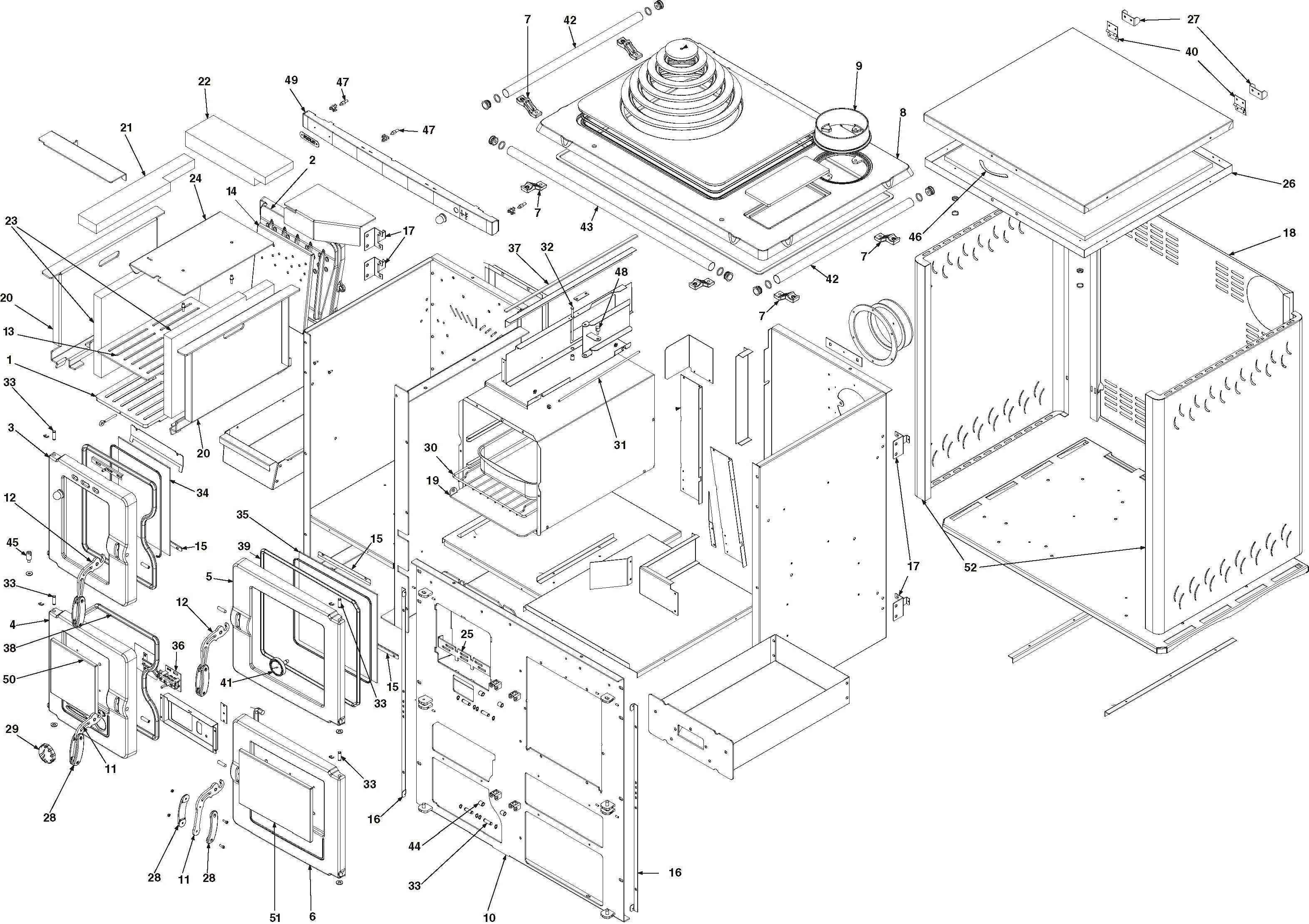

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30917 COMBUSTION CHAMBER GRID 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 2 | 30918 BACK COMBUSTION CHAMBER 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 3 | 30919 COMBUSTION CHAMBER DOOR 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 4 | 30920 ASH DOOR 1 / appliance (sold individually) | CAD $280.00 | -- | |
| 5 | 30921 OVEN DOOR 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 6 | 30922 ACCESSORY DOOR 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 7 | 30923 HANDRAIL SUPPORT 6 / appliance (sold individually) | CAD $26.00 | -- | |
| 8 | 30924 COMPLETE PLATE 1 / appliance (sold individually) | CAD $875.00 | -- | |
| 9 | 30925 CAST IRON COLLAR 2 / appliance (sold individually) | CAD $75.00 | -- | |
| 10 | 30926 CAST IRON FACEPLATE 1 / appliance (sold individually) | CAD $1,150.00 | -- | |
| 11 | 30927 CHROME PLATED HANDLE 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 12 | 30928 LONG CHROME PLATED HANDLE 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 13 | 30929 STAINLESS STEEL STOVE GRATE 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 14 | 30930 STAINLESS STEEL REAR FRAME 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 15 | 30931 GLASS RETAINER 3 / appliance (sold individually) | CAD $21.00 | -- | |
| 16 | 30932 INTERNAL LATERAL SIDE SUPPORT 2 / appliance (sold individually) | CAD $70.00 | -- | |
| 17 | 30933 EXTERNAL LATERAL SIDE SUPPORT 4 / appliance (sold individually) | CAD $41.00 | -- | |
| 18 | 30934 REAR COOK STOVE PANEL 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 19 | 30935 REMOVABLE COOKSTOVE BASE 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 20 | 30936 VERMICULITE RETAINER 2 / appliance (sold individually) | CAD $230.00 | -- | |
| 21 | 30938 LEFT UPPER VERMICULITE 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 22 | 30937 RIGHT UPPER VERMICULITE 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 23 | 30939 SIDE VERMICULITE 2 / appliance (sold individually) | CAD $150.00 | -- | |
| 24 | 30940 BYPASS SMOKE PLATE 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 25 | 30941 SECONDARY AIR PLATE 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 26 | 30942 UNDER LID PLATE 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 27 | 30943 LID SUPPORT 2 / appliance (sold individually) | CAD $36.00 | -- | |
| 28 | 30944 STELLA SIRIA HANDLE 8 / appliance (sold individually) | CAD $25.00 | -- | |
| 29 | 30945 PRIMARY AIR HANDLE 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 30 | 30946 OVEN GRID 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 31 | 30947 SMOKE VALVE CONTROL ROD 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 32 | 30948 SMOKE VALVE PIN 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 33 | 30949 HINGE PIN DOOR 8 / appliance (sold individually) | CAD $90.00 | -- | |
| 34 | 30950 COMBUSTION CHAMBER DOOR GLASS 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 35 | 30951 OVEN DOOR GLASS 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 36 | 30952 THERMOREGULATOR WITHOUT PROBE 1 / appliance (sold individually) | CAD $210.00 | -- | |
| 37 | 30953 INSULATING TAPE 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 38 | 30954 ASH DOOR GASKET 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 39 | 30955 OVEN DOOR GASKET 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 40 | 30956 LID HINGE 2 / appliance (sold individually) | CAD $36.00 | -- | |
| 41 | 30957 OVEN THERMOMETER 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 42 | 30958 LATERAL HANDRAIL 2 / appliance (sold individually) | CAD $130.00 | -- | |
| 43 | 30959 FRONT HANDRAIL 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 44 | 30960 DOOR LOCK BEARING 4 / appliance (sold individually) | CAD $16.00 | -- | |
| 45 | 30961 LOWER DOOR PIN 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 46 | 30962 LID HANDLE 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 47 | 30963 OVEN DOOR CLOSURE DOOR 3 / appliance (sold individually) | CAD $21.00 | -- | |
| 48 | 30964 AIR ADJUSTMENT PIN 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 49 | 30965 AIR CONTROL PANEL 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 50 | 30966 ASH DOOR PLATE 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 51 | 30967 ACCESSORY DOOR PLATE 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 52 | 30968 RIGHT AND LEFT COOKSTOVE PANELS 2 / appliance (sold individually) | CAD $220.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
