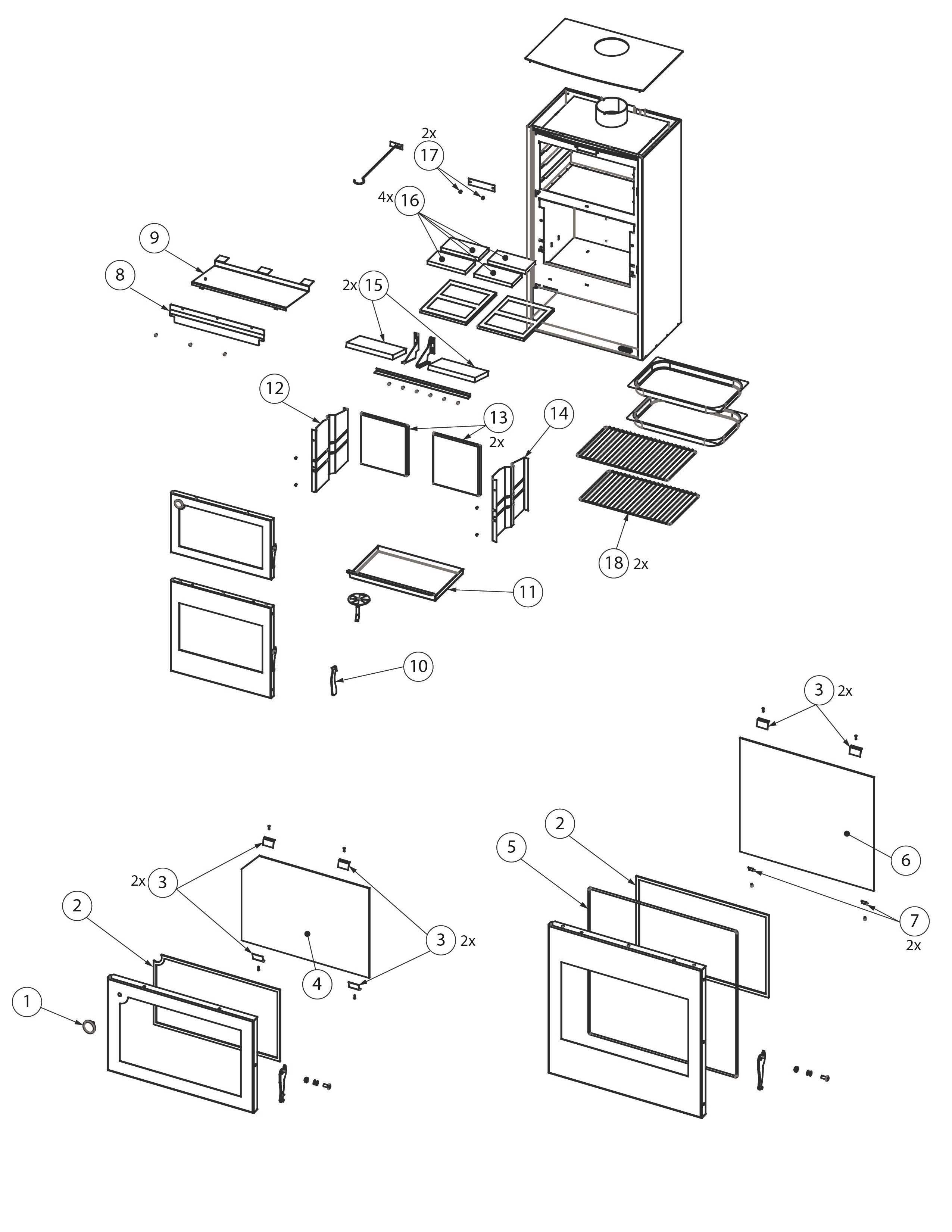

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 31040 THERMOMETER (25TER45FAR) 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 2 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | CAD $11.00 | -- | |
| 3 | 31041 GLASS SUPPORT (GRAP) 6 / appliance (sold individually) | CAD $13.00 | -- | |
| 4 | 23082 OVEN GLASS ATLAS (20CRATLKH) 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 5 | AC06705 GLUE AND 1/4" x 7' WHITE DOOR GASKET KIT 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 6 | 23083 FIREBOX GLASS (20CRATLHOG) 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 7 | 31042 SMALL GLASS SUPPORT (GRAPPEQ) 2 / appliance (sold individually) | CAD $13.00 | -- | |
| 8 | 31039 FRONT BAFFLE SUPPORT (DEFDELATK) 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 9 | 31034 STAINLESS STEEL BAFFLE (DEFSUPATLK) 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 10 | 31036 COLD HAND (MANOG) 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 11 | 31033 FIRE GRATE (BFATLASK ) 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 12 | 31035 STAINLESS STEEL LEFT COMBUSTION CHAMBER PANEL (LATIZATK) 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 13 | 21531 VERMICULITE BACK BOARD (TRAVERATL) 2 / appliance (sold individually) | CAD $55.00 | -- | |
| 14 | 31038 STAINLESS STEEL RIGHT COMBUSTION CHAMBER PANEL (LATDEATK) 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 15 | 21532 VERMICULITE BAFFLE (DEFVERATLK) 2 / appliance (sold individually) | CAD $35.00 | -- | |
| 16 | 21533 REFRACTORY BRICK (LADREF) 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 17 | 31043 CLEANING ACCESS PANEL BLIND SCREW (20REMLAT1) 2 / appliance (sold individually) | CAD $21.00 | -- | |
| 18 | 31037 COOKING GRILL (A0007) 2 / appliance (sold individually) | CAD $150.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
