SETTLER
DB05110--

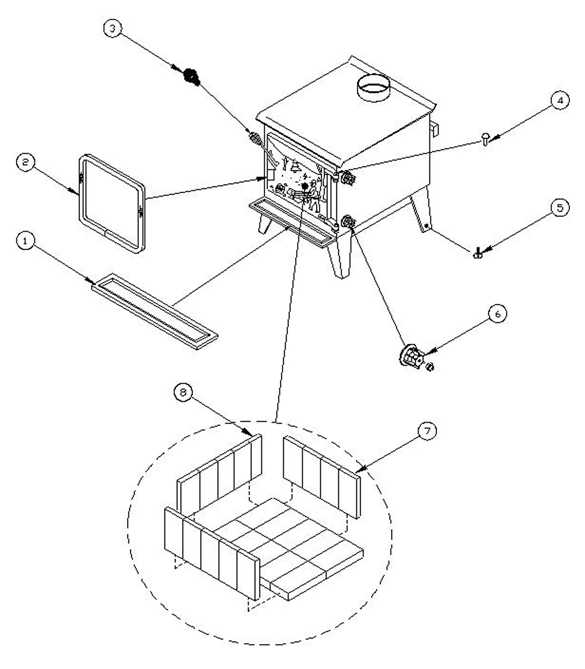

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | SE00210-01 ASH LIP 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 2 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | AC05942 2 UNERVERSAL HINGE PIN KIT 5/16"Ø x 2"L WITH CUTTER PINS 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 5 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 2 / appliance (sold individually) | CAD $8.00 | -- | |
| 6 | 99998 DISCONTINUED 2 / appliance (sold individually) | -- | -- | |
| 7 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 23 / appliance (sold individually) | CAD $3.50 | -- | |
| 8 | PL36258 3" x 4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
