COMPAK - CAST IRON DOOR
DB05130Serial Numbers: 18914 to 31613

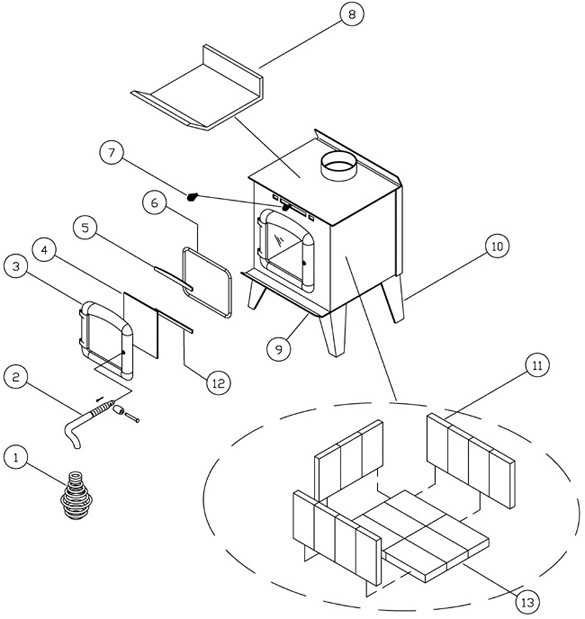

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | SE20207 9 29/32" x 10 29/32" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 5 | PL20214 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 6 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 8 | PL03607 GEMINI-1200 -COMPAK BAFFLE 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 9 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 10 | SE03305-02 LEG KIT (4) 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 11 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | CAD $10.00 | -- | |
| 12 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 13 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
