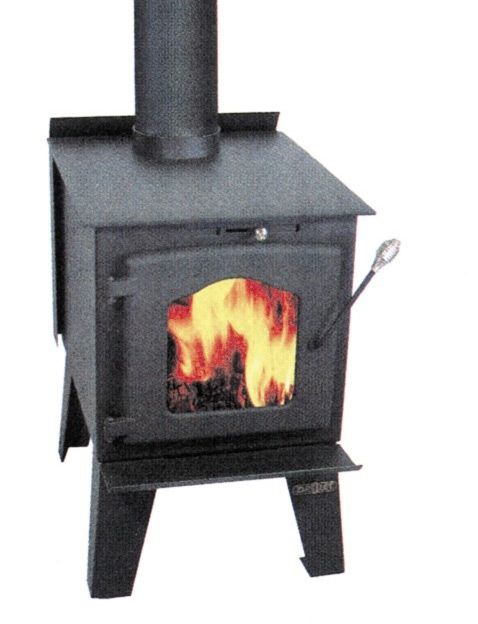

RC - N.E.

DB05137--

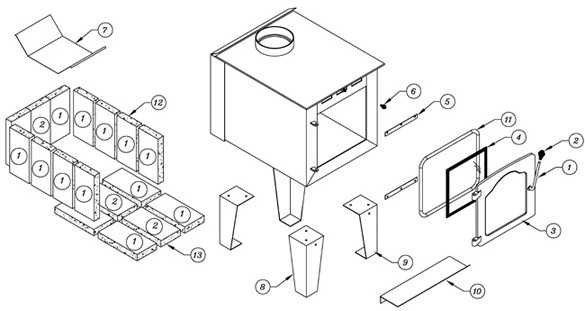

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
199998
DISCONTINUED
1 / appliance (sold individually)
----
2AC07862
3/8" BRASS COIL HANDLE
1 / appliance (sold individually)
CAD $12.00--
399998
DISCONTINUED
1 / appliance (sold individually)
----
4SE26005
9 1/4" x 9 11/16" CS1200 & RC GLASS
1 / appliance (sold individually)
CAD $170.00--
5PL25006
TOP & BOTTOM GLASS RETAINER
2 / appliance (sold individually)
CAD $10.00--
6AC07861
1/4" BRASS COIL HANDLE
1 / appliance (sold individually)
CAD $7.00--
7PL03607
GEMINI-1200 -COMPAK BAFFLE
1 / appliance (sold individually)
CAD $45.00--
899998
DISCONTINUED
1 / appliance (sold individually)
----
999998
DISCONTINUED
1 / appliance (sold individually)
----
10PL03610-01
ASH LIP
1 / appliance (sold individually)
CAD $49.00--
11AC06000
SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
CAD $15.00--
1229010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
14 / appliance (sold individually)
CAD $10.00--
1329015
4" x 9" x 1 1/4" REFRACTORY BRICK
3 / appliance (sold individually)
CAD $10.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
