NORDIC - N.E.
DB05139--

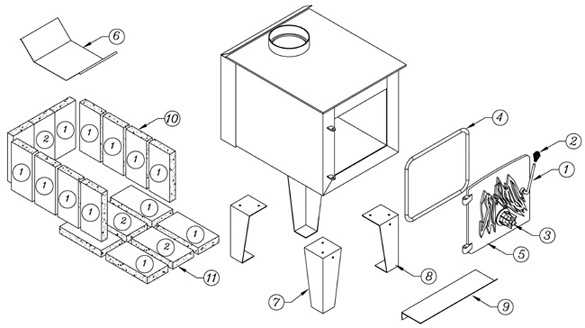

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 2 | AC07862 3/8" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 3 | SE03696 AIR CONTROL KIT 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 4 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 6 | PL03607 GEMINI-1200 -COMPAK BAFFLE 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 7 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 9 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 10 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | CAD $10.00 | -- | |
| 11 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
