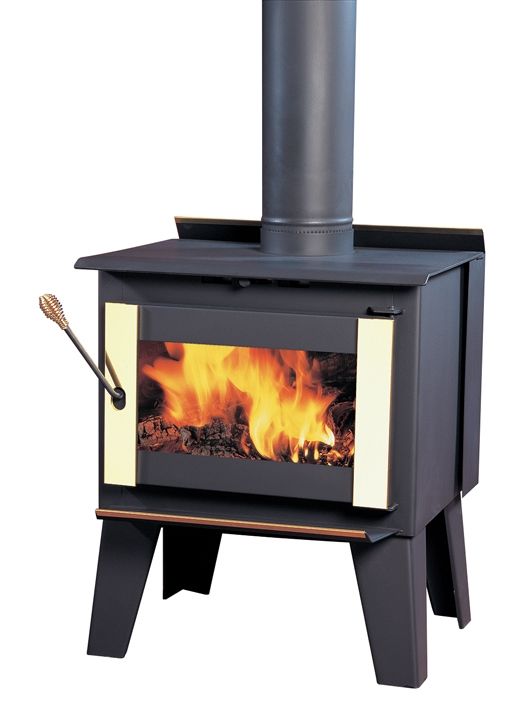

GEMINI 1200 - STEEL DOOR N.E.
DB05142PA--

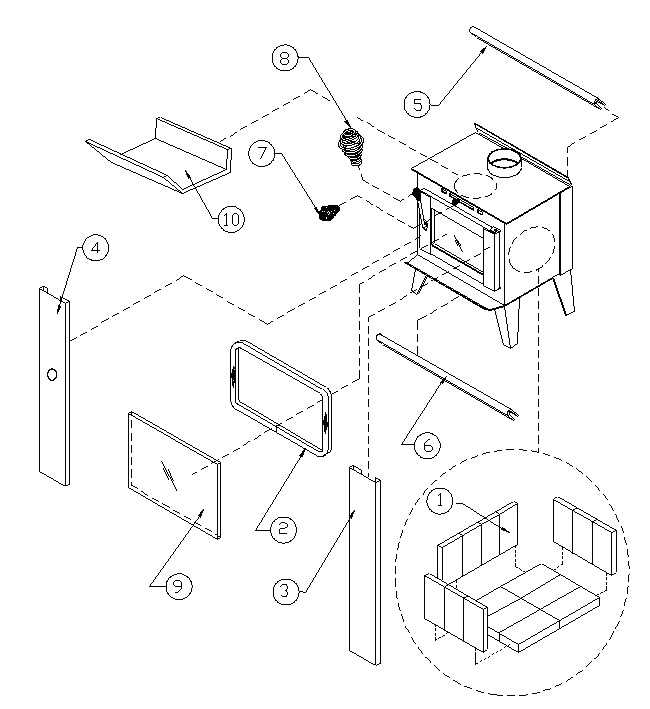

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 16 / appliance (sold individually) | CAD $10.00 | -- | |
| 2 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 5 | PL04647-02 GEM 1200 BACK HEAT SHIELD MOULDING 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 6 | PL04610-01 ASH LIP DECORATIVE TRIM 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 7 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 8 | AC07862 3/8" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 9 | SE04635-15 REPLACEMENT GLASS FOR GEMINI 1200 STEEL DOOR 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 10 | PL03607 GEMINI-1200 -COMPAK BAFFLE 1 / appliance (sold individually) | CAD $45.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
