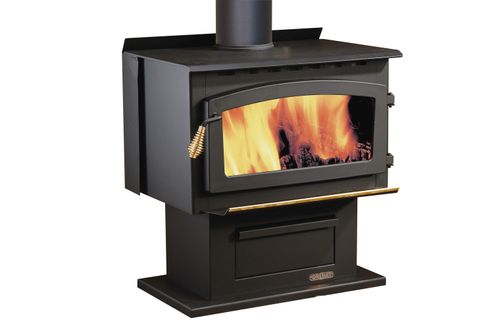

WHISTLER - CAST IRON DOOR N.E.

DB05150--

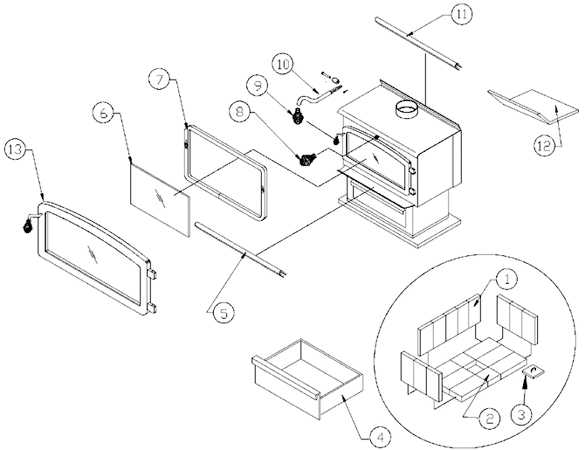

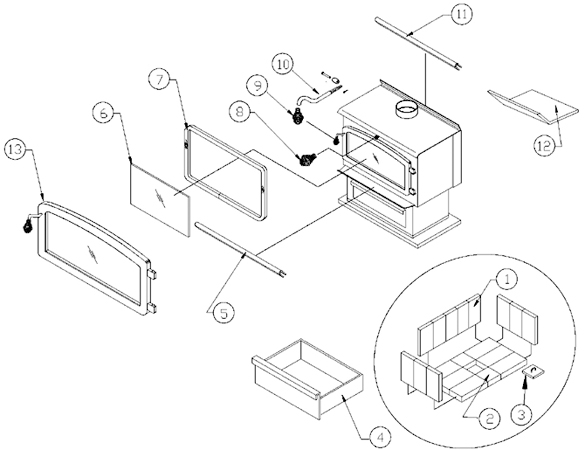

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
129010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
17 / appliance (sold individually)
CAD $10.00--
2PL36049
4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK
2 / appliance (sold individually)
CAD $10.00--
3SE08602
ASH DUMP PLUG
1 / appliance (sold individually)
CAD $25.00--
4SE08304-01
ASH DRAWER
1 / appliance (sold individually)
CAD $70.00--
5PL04910-01
ASHPAN DECORATIVE MOULDING GEM 1500 GOLD
1 / appliance (sold individually)
CAD $46.00--
6SE04636-05
20 5/16" x 7 3/4" x 8 7/8" ARCHED GLASS WITH GASKET
1 / appliance (sold individually)
CAD $200.00--
7AC06100
SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
CAD $15.00--
8AC07861
1/4" BRASS COIL HANDLE
1 / appliance (sold individually)
CAD $7.00--
9AC07860
1/2" BRASS COIL HANDLE
1 / appliance (sold individually)
CAD $8.00--
10AC09155
HANDLE & LATCH KIT
1 / appliance (sold individually)
CAD $55.00--
10AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
CAD $30.00--
1199998
DISCONTINUED
1 / appliance (sold individually)
----
12PL03807
GEM 1500.CASSANDRA FIRESTOP
1 / appliance (sold individually)
CAD $70.00--
1399998
DISCONTINUED
1 / appliance (sold individually)
----

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
