WHISTLER - EXEMPT N.E.
DB05152--

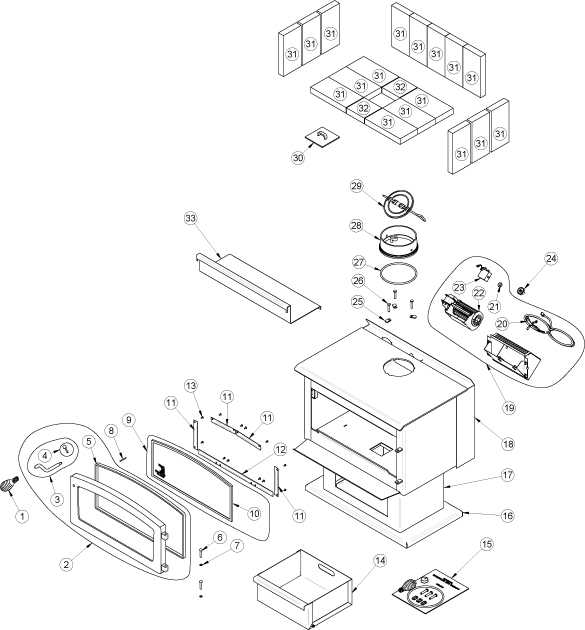

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 3 | AC09155 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 4 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 5 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 6 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 7 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | SE02722-01 7 3/4" x 20 5/16" x 8 7/8" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $210.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | PL02716 TOP & SIDES GLASS BRACKET 4 / appliance (sold individually) | CAD $15.00 | -- | |
| 12 | PL02715 BOTTOM GLASS BRACKET 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 13 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 12 / appliance (sold individually) | CAD $1.00 | -- | |
| 14 | SE08304-03 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 15 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 16 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 17 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 18 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | -- | -- | |
| 19 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 20 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 21 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 22 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 23 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 24 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 26 | 30411 BOLT 5/16-18 x 1 1/2" HEX GRADE 2 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 27 | 40030 6 mm GASKET (PRICE FOR 1 LINEAR FOOT) 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 28 | PL24095 6" CAST IRON FLUE COLLAR 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 29 | 24097 6" CAST IRON FLUE DAMPER 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 30 | SE08602 ASH DUMP PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 31 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 16 / appliance (sold individually) | CAD $10.00 | -- | |
| 32 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 33 | PL02707 STAINLESS STEEL BAFFLE 1 / appliance (sold individually) | CAD $150.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
