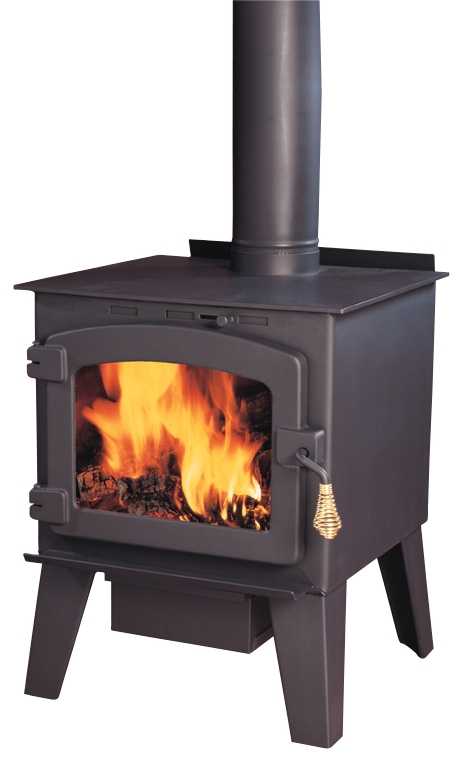

CONTEMPRO 1300 - N.E.
DB05160--

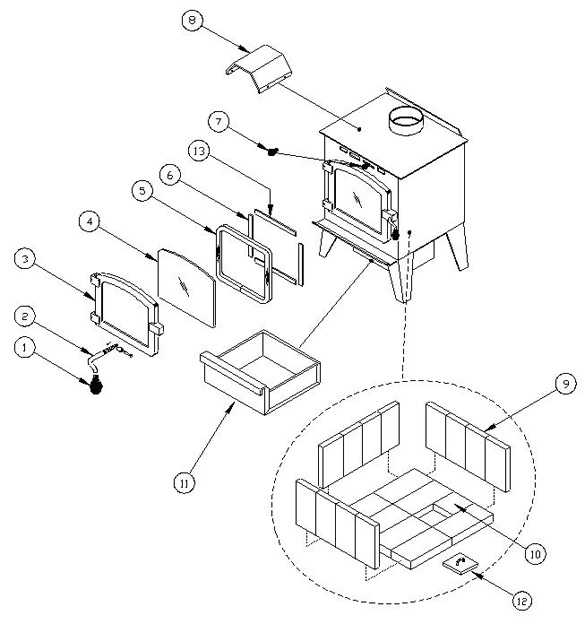

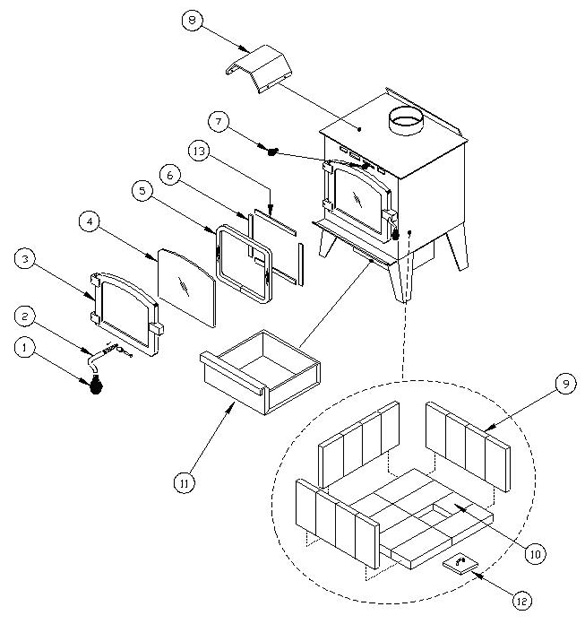

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC09150 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | SE08435-05 11 1/8" X 15 1/4" CONTEMPRO REPLACEMENT GLASS 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 5 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 6 | PL08435-07 GLASS SIDE & BOTTOM MOULDING 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 7 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 8 | PL08407 CONTEMPRO 1300 FIRESTOP 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 9 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 13 / appliance (sold individually) | CAD $10.00 | -- | |
| 10 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 11 | SE08402 CONTEMPRO ASH DRAWER 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 12 | SE08602 ASH DUMP PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 13 | PL08435-06 GLASS TOP MOULDING 1 / appliance (sold individually) | CAD $15.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
