HT-2000 DE LUXE - STEEL DOOR
DB05181PA--

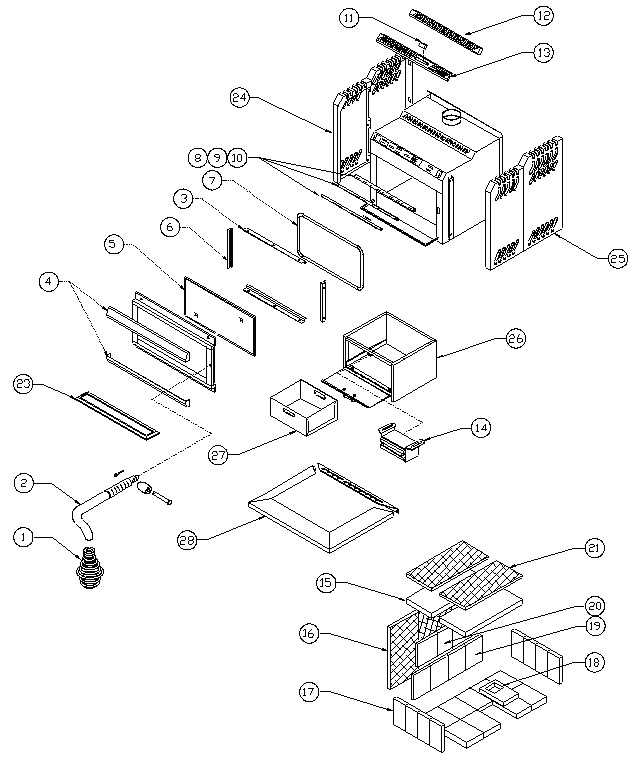

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09186 HT-1200 CAST IRON DOOR LATCH KIT 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 2 | AC09161 HT-1200-2000 STEEL REPLACEMENT HANDLE KIT 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 6 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 7 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 8 | PL07718-02 FRONT SECONDARY AIR TUBE NEUTRAL 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 9 | PL07718-01 MIDDLE SECONDARY AIR TUBE RED 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 10 | PL07718-03 REAR SECONDARY AIR TUBE YELLOW 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 11 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 12 | PL07727-01 GOLD PLATED AIR OUTLET DECORATIVE GRILL 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 13 | PL07727 GOLD PLATED AIR CONTROL DECORATIVE GRILL 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 14 | 30454 DOUBLE MAGNET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 15 | 7725-02 C-CAST BAFFLE 8 7/16" x 24" 2 / appliance (sold individually) | CAD $140.00 | -- | |
| 16 | PL07712 REAR INSULATION 2 / appliance (sold individually) | CAD $35.00 | -- | |
| 17 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 17 / appliance (sold individually) | CAD $10.00 | -- | |
| 18 | 7025 HT2000 DLX ASHPAN BRICK 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 19 | 29005 6" x 8 1/4" x 1 1/4" REFRACTORY BRICK HD 6 / appliance (sold individually) | CAD $5.00 | -- | |
| 20 | PL36029 5 7/8" x 6" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 21 | PL07711 BAFFLE INSULATION 8 1/2" x 24" x 1/2" 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 24 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 26 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 27 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 28 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
