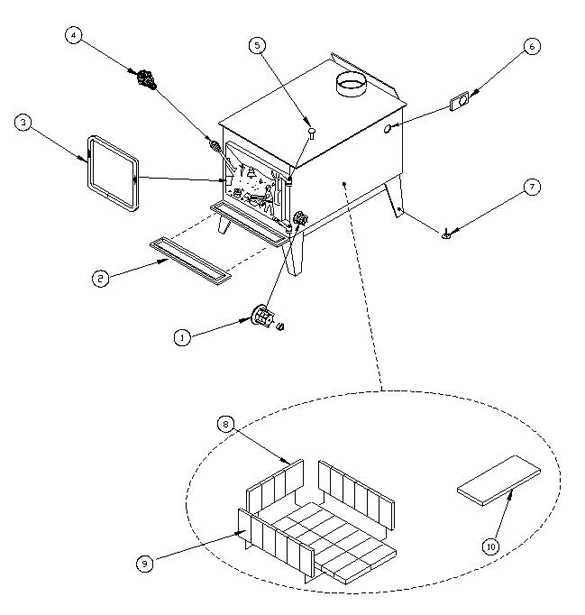

The reference plan contains the numbers used in the table below to identify parts.
# | Part (sold individually) | Price | Availability | |
---|---|---|---|---|
1 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
2 | SE00210-01 ASH LIP 1 / appliance (sold individually) | CAD $180.00 | -- | |
3 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
4 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
5 | AC05942 2 UNERVERSAL HINGE PIN KIT 5/16"Ø x 2"L WITH CUTTER PINS 2 / appliance (sold individually) | CAD $25.00 | -- | |
6 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
7 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 4 / appliance (sold individually) | CAD $5.00 | -- | |
8 | 29005 6" x 8 1/4" x 1 1/4" REFRACTORY BRICK HD 1 / appliance (sold individually) | CAD $5.00 | -- | |
9 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 29 / appliance (sold individually) | CAD $3.50 | -- | |
10 | SE05907 BAFFLE BRICK WITH PROTECTOR 1 / appliance (sold individually) | CAD $130.00 | -- | |
10 | AC05512 STEEL BAFFLE FOR OLD SAWMAN I AND FX3000 1 / appliance (sold individually) | CAD $190.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
