ROYAL COMFORT

DB05350--

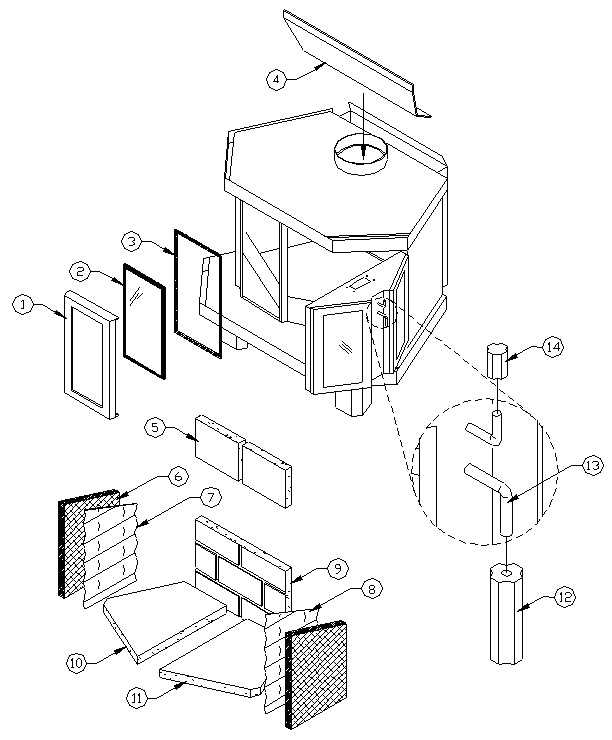

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
0AC05958
METALLIC CHARCOAL STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
CAD $19.00--
199998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
2SE04834-13
7 1/2" x 14 5/8" ROYAL COMFORT II GLASS WITH GASKET
4 / appliance (sold individually)
CAD $120.00--
2PL02234-6
ROYAL COMFORT I GLASS WITHOUT GASKET 7 1/4" x 14 1/8"
1 / appliance (sold individually)
CAD $170.00--
3AC06600
GLUE & GASKET KIT FOR DOUBLE DOOR APPLIANCE
1 / appliance (sold individually)
CAD $70.00--
499998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
529005
6" x 8 1/4" x 1 1/4" REFRACTORY BRICK HD
2 / appliance (sold individually)
CAD $5.00--
6PL04816
ROYAL COMFORT SIDE INSULATOR
2 / appliance (sold individually)
CAD $80.00--
7SE04818
R-COMFORT STAINLESS STEEL LEFT SIDE PANEL
1 / appliance (sold individually)
CAD $120.00--
8SE04818-01
R-COMFORT STAINLESS STEEL RIGHT SIDE PANEL
1 / appliance (sold individually)
CAD $120.00--
999998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
1099998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
1199998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
1299998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
1399998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
14PL04834-10
ROYAL COMFORT AIR CONTROL HANDLE
1 / appliance (sold individually)
CAD $41.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
