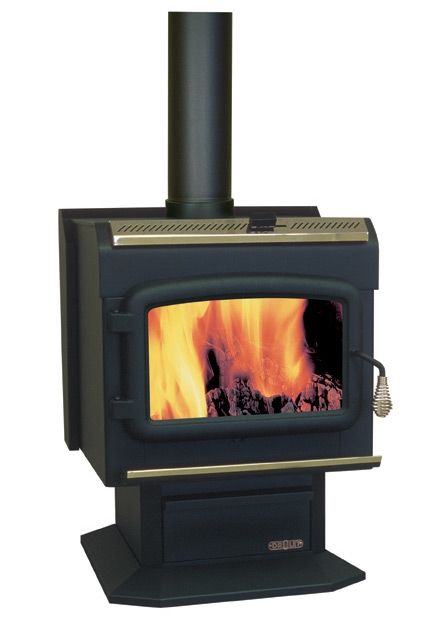

HT1200 - ON PEDESTAL
DB07000--

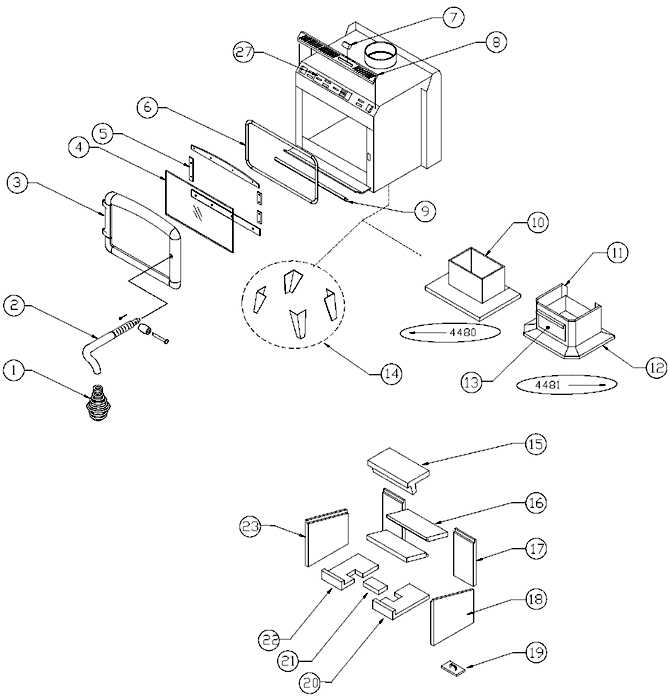

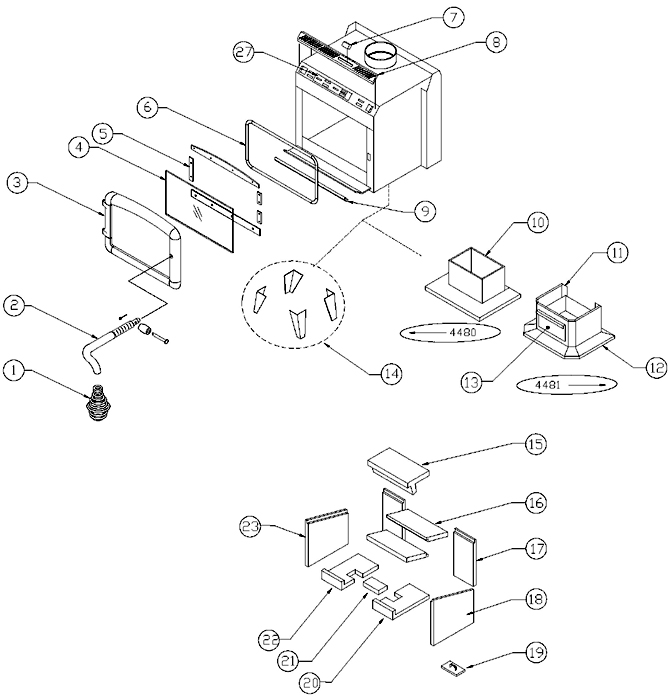

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | SE20106 8 13/32" x 16 21/32" GLASS HT-1200 CAST IRON DOOR 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 5 | PL20115 SIDE GLASS RETAINER (LEFT) 1 / appliance (sold individually) | CAD $26.00 | -- | |
| 6 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 8 | PL06727 HT-1200 DRAFT CONTROL DECORATIVE MOULDIN 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 9 | PL06703 BRASS DECORATIVE ASH LIP TRIM 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 10 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 11 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 12 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 13 | SE08304-02 ASH PAN DRAWER 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 14 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 15 | 6725-06 HT-1200 TOP DEFLECTOR BRICK 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 16 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 18 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 19 | SE01200-02 ASH DUMP PLUG 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 20 | 6725-02 HT-1200 RIGHT FLOOR BRICK 1 / appliance (sold individually) | -- | -- | |
| 21 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $3.50 | -- | |
| 22 | 6725-01 HT-1200 LEFT FLOOR BRICK 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 23 | 6725-03 HT-1200 LEFT SIDE BRICK 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 27 | SE06726 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $31.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
