HT-1200 - STEEL DOOR
DB07000PA--

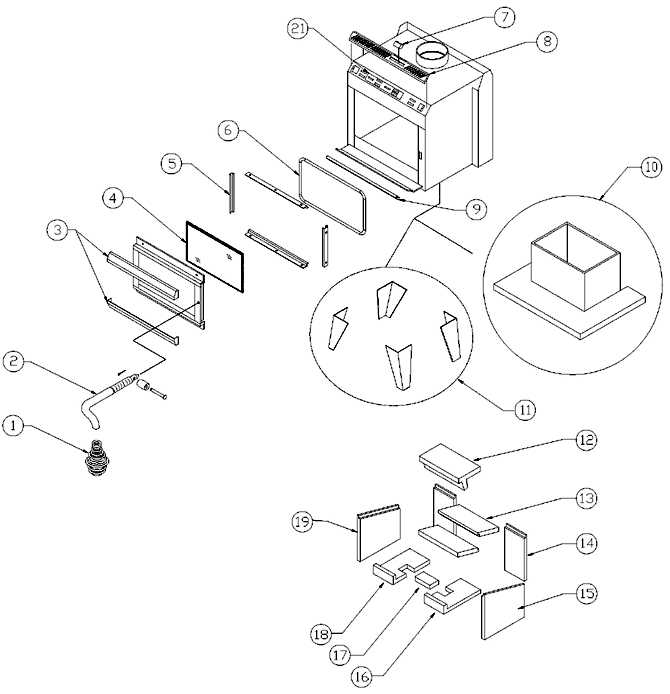

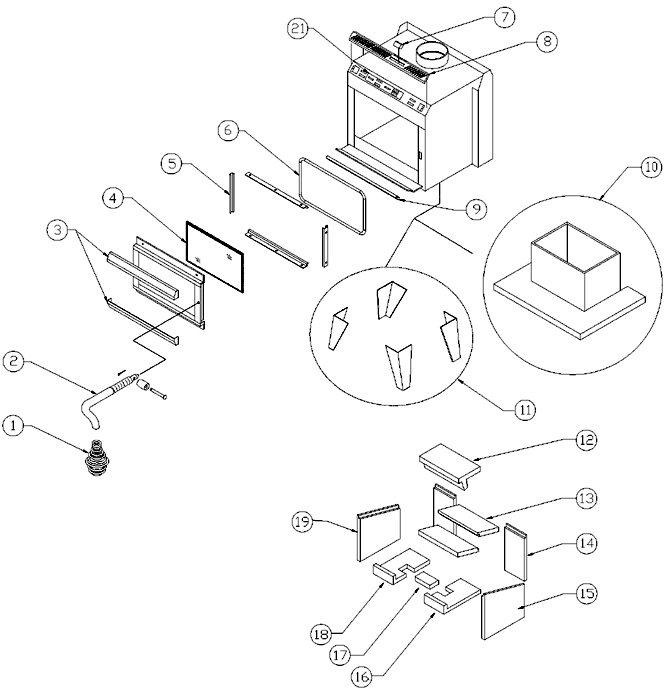

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09161 HT-1200-2000 STEEL REPLACEMENT HANDLE KIT 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 2 | AC09186 HT-1200 CAST IRON DOOR LATCH KIT 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | SE06735-01 HT-1200 REPLACEMENT GLASS 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 6 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 8 | PL06727 HT-1200 DRAFT CONTROL DECORATIVE MOULDIN 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 9 | PL06703 BRASS DECORATIVE ASH LIP TRIM 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 10 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 11 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 12 | 6725-06 HT-1200 TOP DEFLECTOR BRICK 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 13 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 14 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 15 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 16 | 6725-02 HT-1200 RIGHT FLOOR BRICK 1 / appliance (sold individually) | -- | -- | |
| 17 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $3.50 | -- | |
| 18 | 6725-01 HT-1200 LEFT FLOOR BRICK 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 19 | 6725-03 HT-1200 LEFT SIDE BRICK 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 20 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 21 | SE06726 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $31.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
