HT-1600 - CAST IRON DOOR
DB07100--

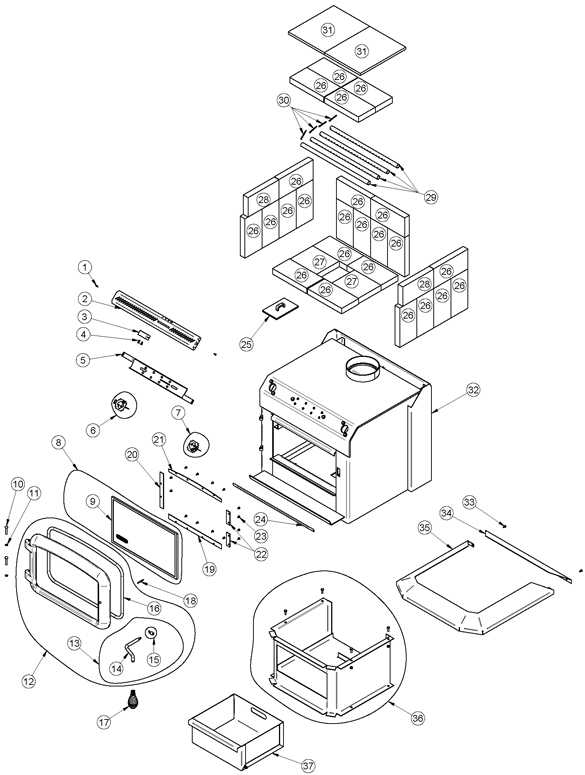

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30075 BRASS METAL SCREW #6 x 1/2" QUADREX 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 2 | PL09247 AIR CONTROL DECORATIVE TRIM 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 3 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 4 | 30129 METAL SCREW #10 x 1/2" PAN QUADREX ZINC "A" TYPE 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 5 | SE09238-12 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 6 | SE09291 LEFT AIR CONTROL MECANISM 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 7 | SE09290 RIGHT AIR CONTROL MECANISM 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 8 | SE20009 10 3/8" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 9 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 10 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 11 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 12 | SE24021B 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 14.13 | AC09160 HANDLE &LATCH KIT 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 15 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 16 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 17 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 18 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 19 | PL20013 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 20 | PL20016 LONG SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 21 | PL20014 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 22 | PL20015 SHORT SIDE GLASS RETAINER 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 23 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 14 / appliance (sold individually) | CAD $1.00 | -- | |
| 24 | PL09225 DECORATIVE ASH LIP TRIM 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 25 | SE09224 ASH CAP PLUG 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 26 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 27 / appliance (sold individually) | CAD $10.00 | -- | |
| 27 | PL36039 6" x 7" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 28 | PL36028 4 1/2" x 8 1/8" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 29 | PL09216 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $85.00 | -- | |
| 30 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 31 | PL09223 9 1/2" x 12" x 1" BAFFLE INSULATION 2 / appliance (sold individually) | CAD $30.00 | -- | |
| 33 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 34 | PL09254 REAR OF PEDESTAL SURROUND 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 35 | PL09256 PEDESTAL SURROUND 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 37 | SE08304-03 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
