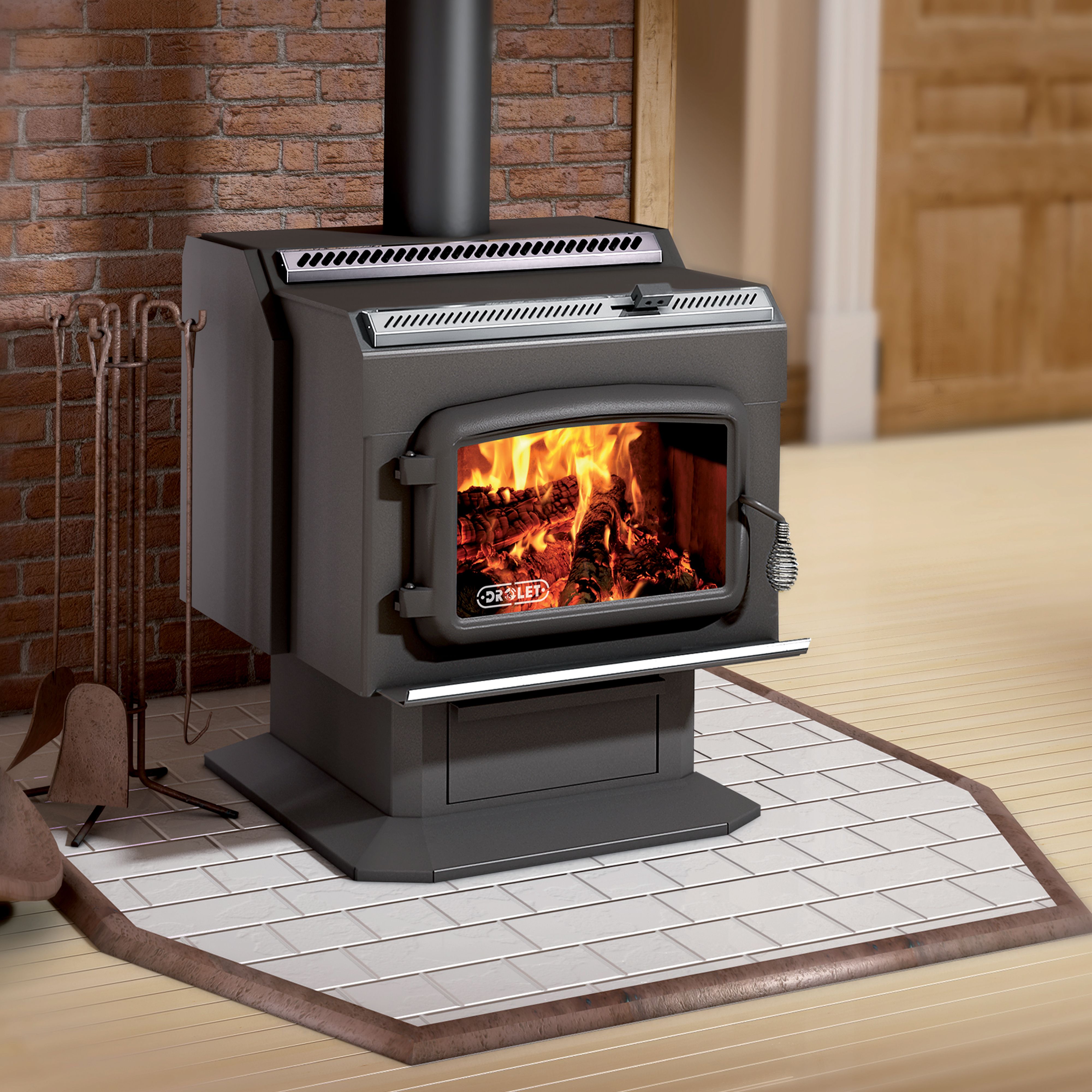

HT-2000
DB07200Serial Numbers: 10055 to 34009

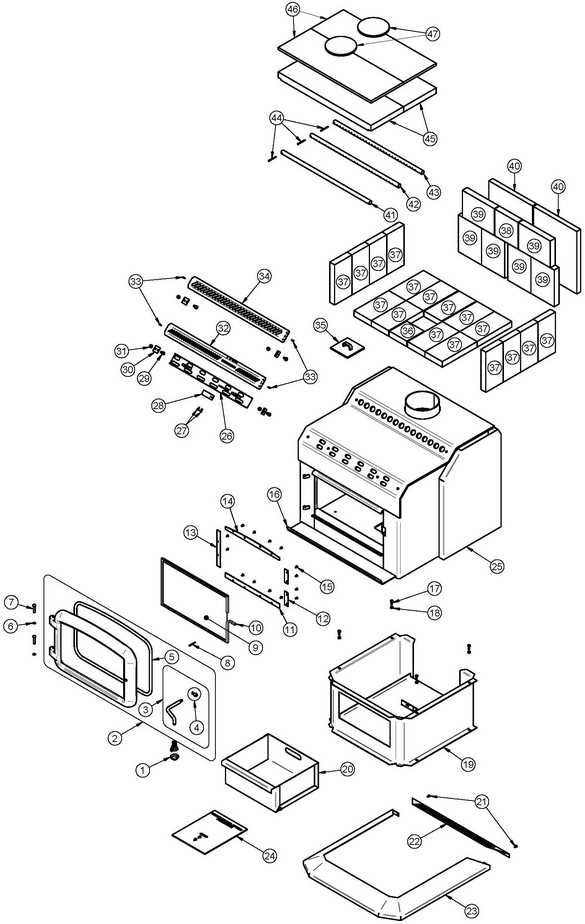

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | SE24021B 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 3 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 4 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 5 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 6 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 7 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 9 | SE20009 10 3/8" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 11 | PL20013 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 12 | PL20015 SHORT SIDE GLASS RETAINER 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 13 | PL20016 LONG SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 14 | PL20014 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 15 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 14 / appliance (sold individually) | CAD $1.00 | -- | |
| 16 | PL07703-01 CHROME DECORATIVE ASH SHELF TRIM 24 1/2" x 1/2" x 1/8" 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 16 | PL07703 BRASS DECORATIVE ASH SHELF TRIM 24 1/2" x 1/2" x 1/8" 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 17 | 30093 BOLT 1/4-20 x 3/4" HEX GRADE 5 4 / appliance (sold individually) | CAD $2.00 | -- | |
| 18 | 30100 BLACK HEX NUT 1/4 - 20 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 19 | SE07761 PEDESTAL ASSEMBLY WITHOUT DRAWER 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 20 | SE08304-03 ASH DRAWER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 21 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 22 | PL07763 BACK OF PEDESTAL CONTOUR 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 23 | PL07760 PEDESTAL SURROUND 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 24 | SE06722 INSTRUCTION MANUAL KIT 1 / appliance (sold individually) | -- | -- | |
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 26 | SE07726 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 27 | 30129 METAL SCREW #10 x 1/2" PAN QUADREX ZINC "A" TYPE 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 28 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 29 | 30092 BOLT 5/16"-18 x 3/4" HEX GRADE 5 6 / appliance (sold individually) | CAD $2.00 | -- | |
| 30 | PL06727-01 DECORATIVE MOULDING BRACE 4 / appliance (sold individually) | CAD $13.00 | -- | |
| 31 | 30422 NUT 5/16 -18 HEX ZINC 52-008-045 6 / appliance (sold individually) | CAD $12.00 | -- | |
| 32 | PL07728 AIR CONTROL DECORATIVE GRILL BRUSHED NICKEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 32 | PL07727 GOLD PLATED AIR CONTROL DECORATIVE GRILL 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 33 | 30075 BRASS METAL SCREW #6 x 1/2" QUADREX 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 33 | 30142 NICKEL METAL SCREW #6 x 1/2" QUADREX 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 34 | PL07727-01 GOLD PLATED AIR OUTLET DECORATIVE GRILL 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 34 | PL07729 AIR OUTLET DECORATIVE GRILL BRUSHED NICKEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 35 | SE02000-02 ASH DUMP COVER 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 36 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 37 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 17 / appliance (sold individually) | CAD $10.00 | -- | |
| 38 | PL36029 5 7/8" x 6" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 39 | 29005 6" x 8 1/4" x 1 1/4" REFRACTORY BRICK HD 6 / appliance (sold individually) | CAD $5.00 | -- | |
| 40 | PL07712 REAR INSULATION 2 / appliance (sold individually) | CAD $35.00 | -- | |
| 41 | PL07718-02 FRONT SECONDARY AIR TUBE NEUTRAL 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 42 | PL07718-01 MIDDLE SECONDARY AIR TUBE RED 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 43 | PL07718-03 REAR SECONDARY AIR TUBE YELLOW 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 44 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 45 | 7725-02 C-CAST BAFFLE 8 7/16" x 24" 2 / appliance (sold individually) | CAD $140.00 | -- | |
| 46 | PL07711 BAFFLE INSULATION 8 1/2" x 24" x 1/2" 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 47 | PL34026 BAFFLE INSULATION WEIGHT 2 / appliance (sold individually) | CAD $25.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
