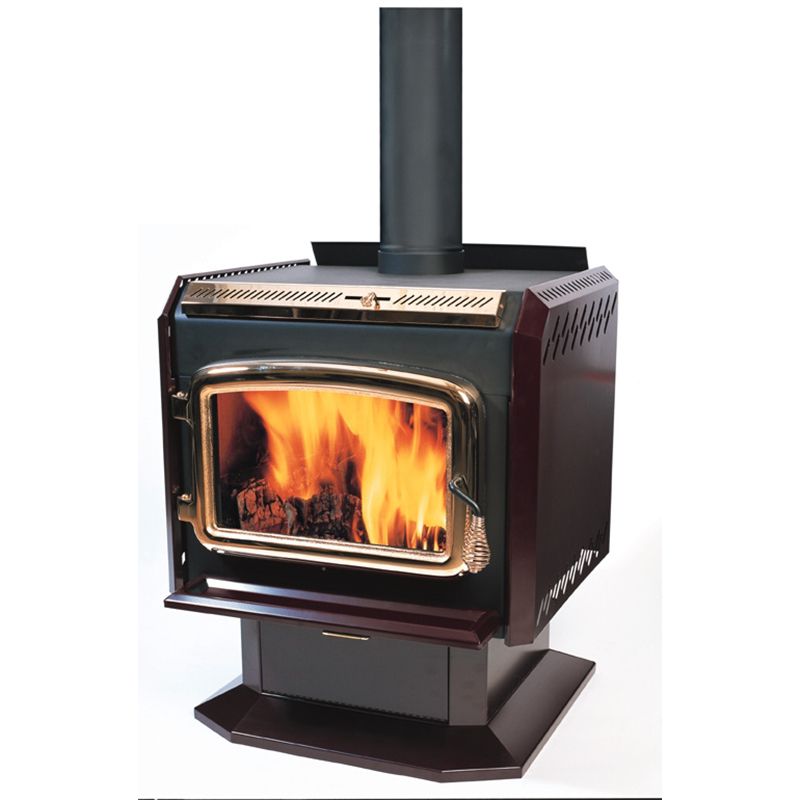

SIBERIAN 1200
DB07400--

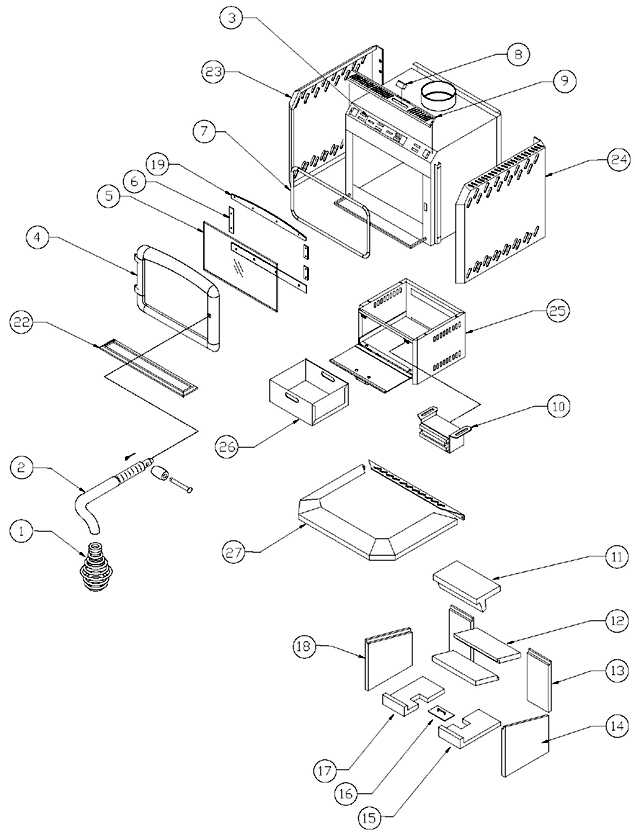

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 3 | SE06726 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 4 | SE24019BO ASSEMBLY SIBERIAN 1200 CID DOOR 1 / appliance (sold individually) | CAD $320.00 | -- | |
| 5 | SE20106 8 13/32" x 16 21/32" GLASS HT-1200 CAST IRON DOOR 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 6.2 | PL20116 SIDE GLASS RETAINER (RIGHT) 3 / appliance (sold individually) | CAD $26.00 | -- | |
| 7 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 8 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 9 | PL06727 HT-1200 DRAFT CONTROL DECORATIVE MOULDIN 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 10 | 30454 DOUBLE MAGNET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 11 | 6725-06 HT-1200 TOP DEFLECTOR BRICK 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 13 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 14 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 15 | 6725-02 HT-1200 RIGHT FLOOR BRICK 1 / appliance (sold individually) | -- | -- | |
| 16 | SE01200-02 ASH DUMP PLUG 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 17 | 6725-01 HT-1200 LEFT FLOOR BRICK 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 18 | 6725-03 HT-1200 LEFT SIDE BRICK 1 / appliance (sold individually) | CAD $100.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
