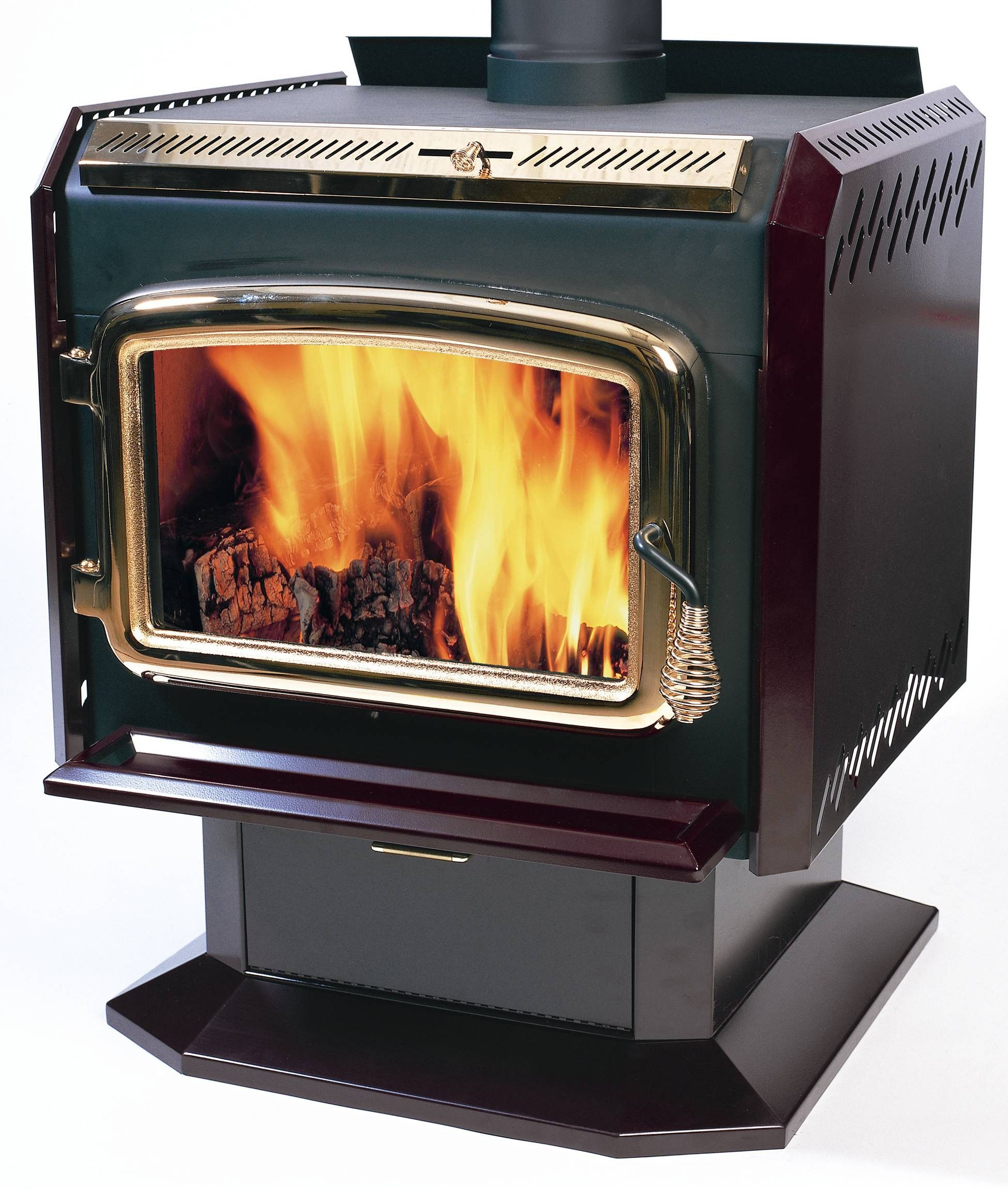

SIBERIAN 1600
DB07410--

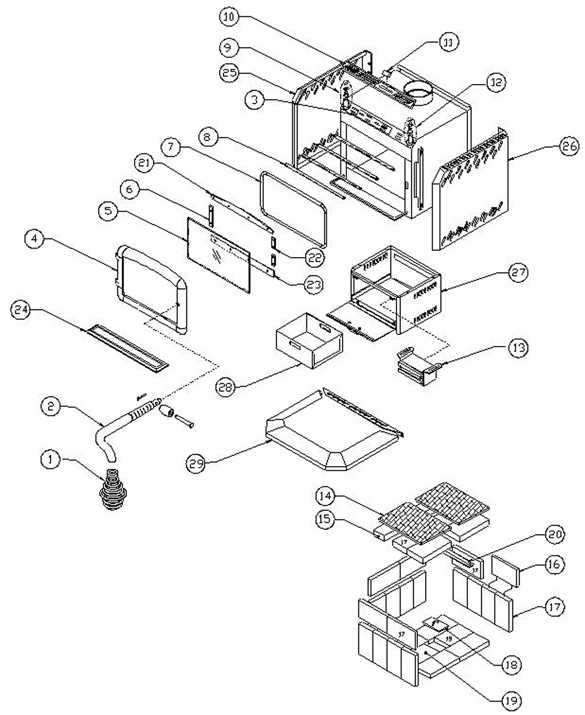

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 3 | SE09238-12 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 4 | SE24021BO ASSEMBLY SIBERIAN 1600-2000 CID DOOR 1 / appliance (sold individually) | CAD $410.00 | -- | |
| 5 | SE20009 10 3/8" x 17 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 6 | PL20016 LONG SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 8 | PL09216 SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 9 | SE09291 LEFT AIR CONTROL MECANISM 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 10 | PL09247 AIR CONTROL DECORATIVE TRIM 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 11 | PL06728 AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 12 | SE09290 RIGHT AIR CONTROL MECANISM 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 13 | 30454 DOUBLE MAGNET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 14 | PL09223 9 1/2" x 12" x 1" BAFFLE INSULATION 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 15 | PL36027 3" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 17 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 25 / appliance (sold individually) | CAD $10.00 | -- | |
| 18 | SE09224 ASH CAP PLUG 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 19 | PL36039 6" x 7" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 20 | SE09213-01 HT-1600 BRICK SUPPORT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 21 | PL20014 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 22 | PL20015 SHORT SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
