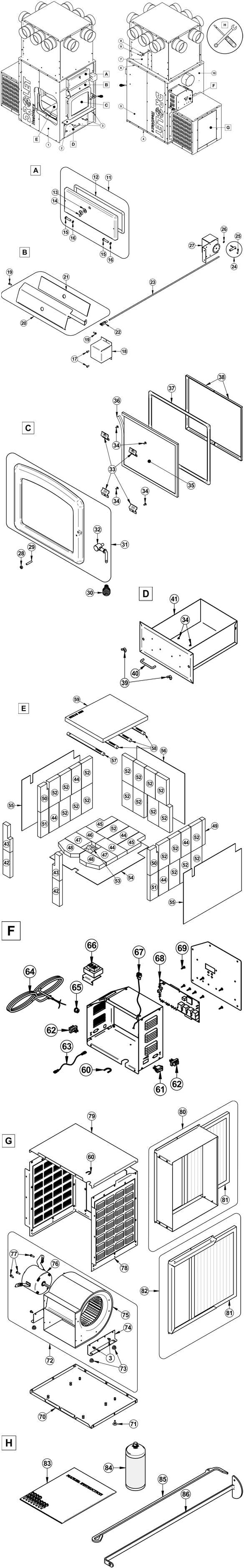

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | PL66121 LEFT AIR JACKET PANNEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 2 | PL56276 ASH SHELF 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 3 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 7 / appliance (sold individually) | CAD $1.00 | -- | |
| 4 | SE66009 AIR JACKET FLOOR ASSEMBLY 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 5 | PL66122 RIGHT AIR JACKET PANNEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 6 | PL66102 FURNACE TOP 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 7 | SE66103 PLENUM ASSEMBLY 1 / appliance (sold individually) | CAD $575.00 | -- | |
| 8 | SE44096 100 OHM RTD PROBE 38" WIRE WITH CONNECTOR 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 9 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 10 | PL66033 FURNACE BACK 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 11 | SE48054 HEAT EXCHANGER ACCESS DOOR 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 12 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 13 | 30210 WASHER 29/32" OD x 3/8" ID ZINC 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 14.39 | 30416 WING NUT 3/8"-16 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 15 | 30168 HINGE PIN 5/16"O x 1 1/4"L 2 / appliance (sold individually) | CAD $13.00 | -- | |
| 16 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 17 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 18 | PL66125 AIR INLET DAMPER PROTECTION BOX 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 19 | 30502 SELF TAPING SCREW #8 - 32 x 1/2" TYPE F x 3/4 HEX FLAT HEAD 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 20 | PL48205 PRIMARY AIR INLET DAMPER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 21 | 21197 TRAP GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 22 | 30867 CLEVIS YOKES 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 23 | 30874 PRIMARY AIR CONTROL ROD 1 / appliance (sold individually) | CAD $36.00 | -- | |
| 24 | SE56822 ROD RETAINER 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 25 | 30117 BLACK SET SCREW #10-32 x 3/16" 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 26 | 30146 PUSH NUT 1/8"O INT. x 3/8 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 27 | SE51000-01 HONEYWELL 24V DAMPER MOTOR WITH TERMINALS 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 28 | 30100 BLACK HEX NUT 1/4 - 20 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 29 | 30128 SOCKET SET SCREW 1/4"-20 x 1 1/4" 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 30 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 31 | SE24258 CAST IRON DOOR WITH HANDLE 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 32 | AC09151 REPLACEMENT HANDLE KIT 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 33 | PL51351 GLASS RETAINER FRAME BRACKET 4 / appliance (sold individually) | CAD $5.00 | -- | |
| 34 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 35 | SE51352 10 7/8" x 13 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 36 | AC06810 1/8" x 3/8" x 6' SELF-ADHESIVE BLACK GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 37 | AC06725 GLUE AND 3/4" x 7' WHITE DOOR GASKET KIT 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 38 | PL51349 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 40 | 28061 CHROME ASH DRAWER HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 41 | SE66025 ASH DRAWER 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 42 | PL36255 2 7/8" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 43 | PL36254 2 7/8" x 9" x 1" x 4 3/8" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 44 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 6 / appliance (sold individually) | CAD $10.00 | -- | |
| 45 | PL36163 4" x 9" x 1 5/8" x 3 5/16" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 46 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $3.50 | -- | |
| 47 | PL36047 4 1/2" x 6 1/2" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 48 | PL36248 4 1/2" x 8 5/16" x 1 3/8" x 1 3/8" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 49 | PL36162 1 1/4" x 9" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 50 | PL36271 3 1/4" x 9" x 1 1/2" x 2 1/8" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 51 | PL36102 3 1/4" x 9" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 52 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 21 / appliance (sold individually) | CAD $10.00 | -- | |
| 53 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 54 | 21299 FIREBOX BOTTOM INSULATION 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 55 | 21084 FIREBOX SIDE INSULATION 2 / appliance (sold individually) | CAD $25.00 | -- | |
| 56 | 21083 FIREBOX BACK INSULATION 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 57 | PL66062 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 58 | PL66061 SECONDARY AIR TUBE 3 / appliance (sold individually) | CAD $60.00 | -- | |
| 59 | 21228 C-CAST BAFFLE 18 3/8" x 15 1/2" x 1 1/4'' 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 60 | 30494 PANDUIT POLYETHYLENE EXTRUSION 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 61 | 44091 ROCKER SWITCH 2 POSITION MSR-8 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 62 | 60036 THERMOSTAT TERMINAL 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 63 | 60300 BLACK ELECTRICAL WIRE TEW 105°C 18 AWG 14" 10 / appliance (sold individually) | CAD $19.00 | -- | |
| 64 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 65 | 60008 BLACK NYLON BUSHING 1 / appliance (sold individually) | CAD $13.00 | -- | |
| 66 | 60208 TRANSFORMER 120 V/24 V 20 VA 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 67 | 60369 24 AWG CSA TEW 105°C 600V WIRE 16" 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 68 | PL66123 FAN & LIMIT ELECTRONIC BOARD 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 69 | 30408 ELECTRONIC BOARD CLIP 10 / appliance (sold individually) | CAD $5.00 | -- | |
| 70 | PL66035 BLOWER BOX BASE 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 71 | 30536 LEVELING BOLT 1/4 - 20 x 1" 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 72 | SE66124 BLOWER ASSEMBLY WITH 1/4 HP MOTOR, DD 4 SPEED 1075/4RPM 1 / appliance (sold individually) | CAD $420.00 | -- | |
| 73 | 30335 BLOWER ANTIVIBRATION CUSHION 4 / appliance (sold individually) | CAD $5.00 | -- | |
| 74 | PL66037 BLOWER HOUSING BACKET 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 75 | 51010 BLOWER HOSING G-90 (DTC916) 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 76 | 51009 1/4 HP DD-4 SPEED MOTOR 1075/4RPM 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 77 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 78 | PL66043 BLOWER BOX SURROUND 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 79 | PL66042 BLOWER BOX TOP 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 80 | AC01390 CARDBOARD FRAME AIR FILTER WITH SUPPORT (20" x 15" x 1") 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 81 | 21439 WASHABLE ALUMINIUM AIR FILTER 20" x 15" x 1" 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 81 | 21044 CARDBOARD FRAME AIR FILTER 20" x 15" x 1" 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 82 | AC01392 COLD AIR RETURN HOUSING WITH FILTER 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 83 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 84 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 85 | PL48173 POKER 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 86 | PL48170 HEAT EXCHANGER SCRAPER 1 / appliance (sold individually) | CAD $30.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
