DV45
DG04905K--

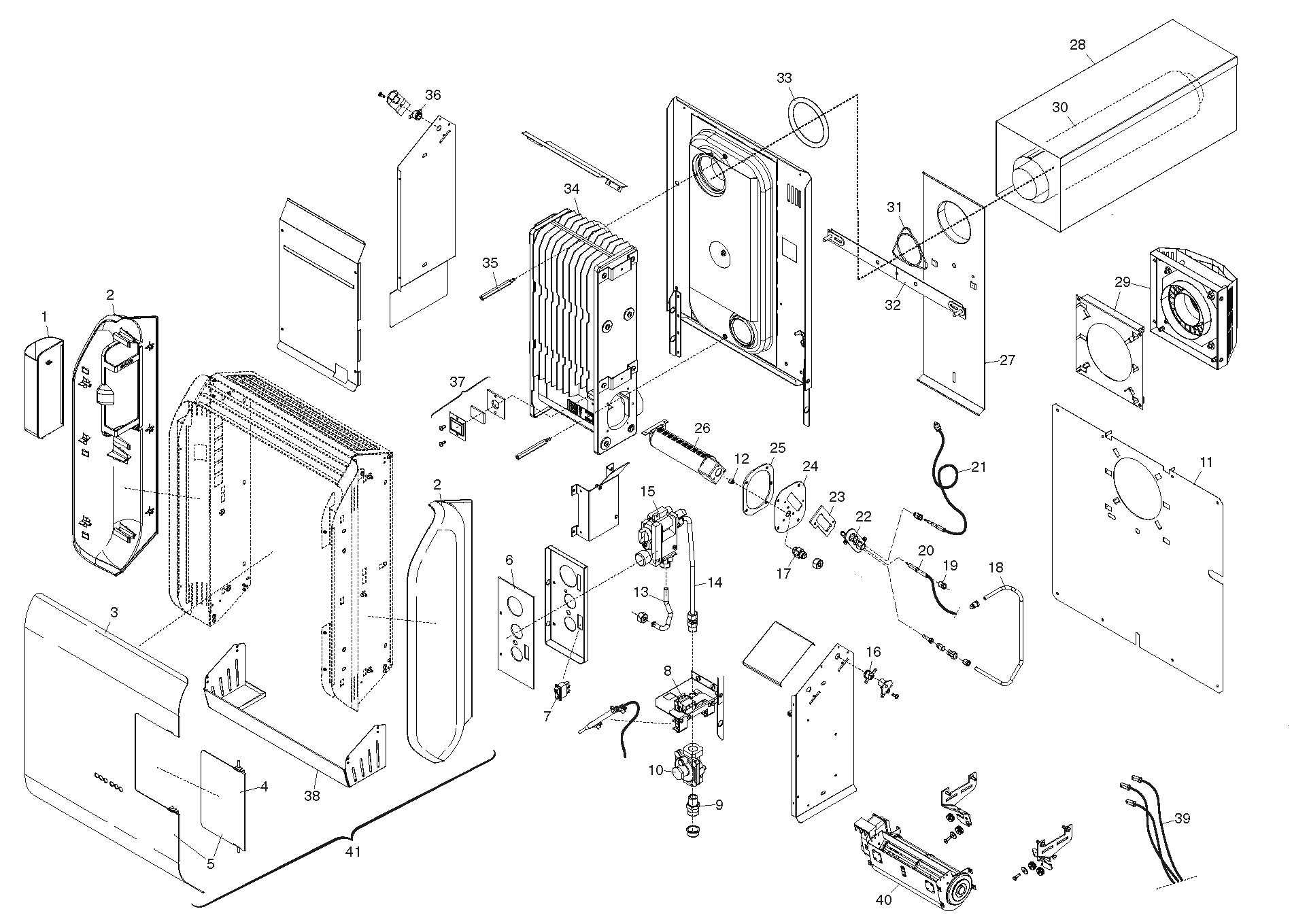

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 31135 RAL9002 HUMIDIFYING TRAY 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 2 | 31136 RAL9002 DX + SX SIDE PANELS 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 3 | 31137 RAL9002 FRONT PANEL 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 4 | 31138 RAL9002 DOOR 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 5 | 31139 RAL9002 FRONT PANEL + DOOR 80010673 00 1 / appliance (sold individually) | CAD $310.00 | -- | |
| 6 | 44236 LEXAN DASHBOARD 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 7 | 44232 VENT SWITCH TANGENTIAL 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 8 | 44237 TERMINAL BLOCK WITH FUSE 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 9 | 49729 GAS CONNECTION 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 10 | 49716 PRESSURE REGULATOR 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 11 | 49730 DV45 WALL PROTECTION TEMPLATE 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 12 | 49728 GAZ "E" (LPG) BURNER ORIFICE 80001300 SB 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 12 | 49727 GAZ "A" (LNG) BURNER ORIFICE 80001260 SB 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 13 | 49718 GAS OUTLET PIPE 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 14 | 49719 GAS INLET PIPE 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 15 | 49720 GAS VALVE 1 / appliance (sold individually) | CAD $340.00 | -- | |
| 16 | 44233 SAFETY THERMODISC 800002055 SB 1 / appliance (sold individually) | CAD $48.00 | -- | |
| 17 | 49731 ORIFICE COUPLER 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 18 | 49721 PILOT TUBE 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 19 | 49722 ELECTRODE FIXING NUT 1 / appliance (sold individually) | CAD $28.00 | -- | |
| 20 | 49723 IGNITION ELECTRODE 800001200 00 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 21 | 49724 BENT THERMOCOUPLE 80002057 SB 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 22 | 49725 PILOT BURNER 80000990 00 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 23 | 21600 PILOT BURNER SEAL 1 / appliance (sold individually) | CAD $22.00 | -- | |
| 24 | 49732 BURNER SUPPORT 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 26 | 49726 BURNER DV45 80001400 00 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 27 | 49733 MOUNTING TEMPLATE 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 28 | PL69252 WALL PASS THROUGH 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 29 | SE69230 WALL CONNECTOR ASSEMBLY 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 30 | PL69250 INNER PIPE 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 30 | PL69251 OUTTER PIPE 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 31 | PL69130 PIPE SPACER 2 / appliance (sold individually) | CAD $17.00 | -- | |
| 32 | 49734 TEMPLATE BRACKET 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 33 | 21599 O-RING PIPE 80000671 00 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 35 | 31140 MOUNTING ROD M6 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 36 | 44238 FAN THERMOSTAT 80001460 SB 1 / appliance (sold individually) | CAD $38.00 | -- | |
| 37 | 49736 VISION KIT 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 38 | 31141 LOWER CARTER 80002068 00 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 39 | 60414 ELECTRICAL WIRING 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 40 | 44234 TANGENTIAL BLOWER 80010693 00 1 / appliance (sold individually) | CAD $240.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
