ULTRA-FLAME (5-6 LOGS)
DG05437--

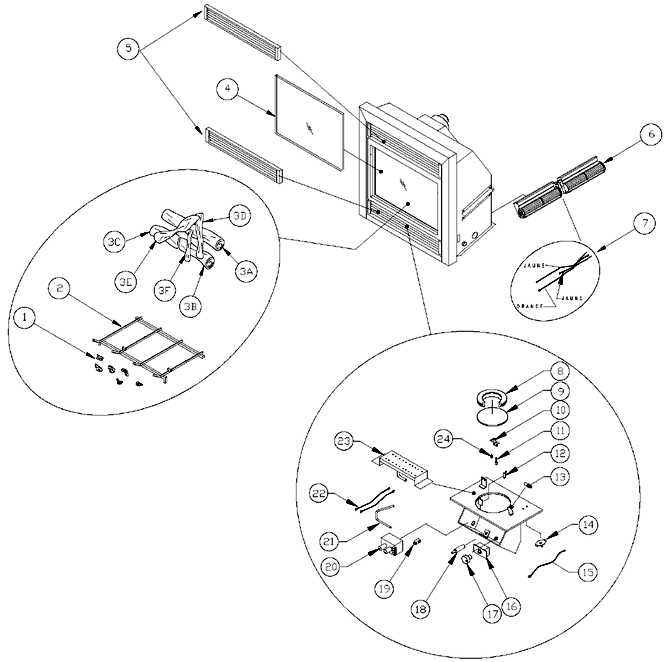

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 6 | 44072 DOUBLE CAGE BLOWER 115V-60Hz-80W 120 CFM 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 10 | SE49200 CONVERTIBLE PILOT ASSEMBLY S.I.T. NG OR LP "L" SHAPPED BRACKET 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 12 | 44097 SAIA SECURITY SWITCH 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 13 | 9071-0 # 36 NATURAL INTAKE BURNER (ORIFICE) 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 14 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 16 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 17 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 18 | 49128 S.I.T. 0073-953 PIEZO BUTTON 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 19 | 49115 INTERRUPTOR BLOCK FOR THERMOCOUPLE 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 20 | 49130 S.I.T. VALVE NOVA 0820-844 NG TO LP CONVERTIBLE 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 20 | 49126 S.I.T. VALVE NOVA 0820-651 LP (HG34) 1 / appliance (sold individually) | -- | -- | |
| 22 | 9312-03 20" PIEZO WIRE HG38 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 24 | SE49122 S.I.T. 0.290.118 THERMOCOUPLE WITH COMPRESSION SLEEVE 600MM (SHORT) 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 25 | AC49106K CONVERSION KIT NP TO LP GAS 1 / appliance (sold individually) | CAD $95.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
