SGS
DG05450--

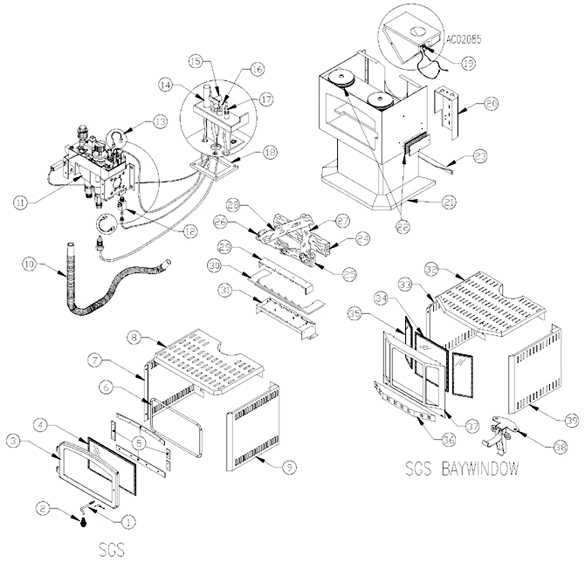

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC09165 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 1 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | SE08537-08 7 7/8" x 16 3/4" x 8 25/32" ARCHED GLASS WITH GASKET 1 / appliance (sold individually) | CAD $170.00 | -- | |
| 5 | PL08535-06 GLASS RETAINER KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 6 | AC06300 ROUND GASKET & SILICONE KIT 3/8" x 6.6' 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 7 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 9 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 10 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 11 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 12 | 49115 INTERRUPTOR BLOCK FOR THERMOCOUPLE 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 13 | 9117-01 THERMOSTAT BYPASS WIRE 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 15 | SE49200 CONVERTIBLE PILOT ASSEMBLY S.I.T. NG OR LP "L" SHAPPED BRACKET 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 16 | 49603 CERAMIC IGNITION ELECTRODE FOR PIEZO 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 17 | SE49122 S.I.T. 0.290.118 THERMOCOUPLE WITH COMPRESSION SLEEVE 600MM (SHORT) 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 18 | 29027 PILOT GASKET 1 / appliance (sold individually) | CAD $4.00 | -- | |
| 19 | 44047 EXHAUST SPILL SWITCH THERMODISC 250F - 200F 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 20 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 21 | PL16038 U SHAPED PEDESTAL SURROUND 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 22 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 24 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 30 | PL29016 GRATE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 31 | SE09011-02 SGS PROP.& NAT.BURNER 1 / appliance (sold individually) | CAD $270.00 | -- | |
| 34 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 35 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 38 | 30439 TENSION CLAMP 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 41 | PL08537-07 RIGHT GLASS RETAINER 1 / appliance (sold individually) | CAD $26.00 | -- | |
| 42 | PL08537-05 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 43 | AC49106K CONVERSION KIT NP TO LP GAS 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 44 | AC49109K CONVERSION KIT LP TO NG 1 / appliance (sold individually) | CAD $220.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
