ALASKA 2000
DH04000--

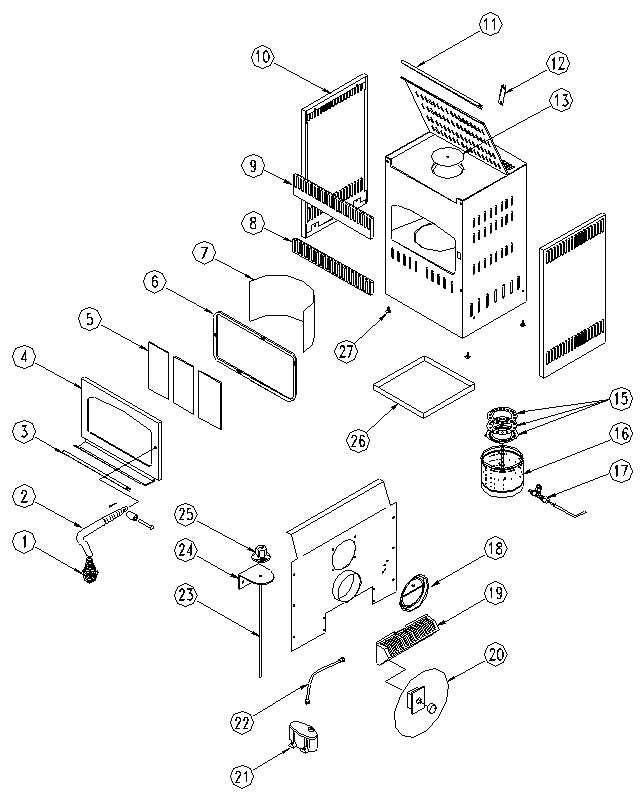

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09165 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 5 | SE14128 11 5/8" x 6 3/8" STEEL DOOR 3 GLASS SET - ALASKA/YUKON 1 / appliance (sold individually) | CAD $210.00 | -- | |
| 6 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 9 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 10 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 11 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 12 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 13 | SE21047 PRESSURE RELEASE COVER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 13 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 15 | PL09957-01 10" BURNER SUPERIOR RING 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 15 | PL09957 10" CENTRAL BURNER RING "B" 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 15 | PL09956 INFERIOR BURNER RING ''C'' 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 15 | SE09957 10" UPPER RING ''A'' WITH LEGS 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 16 | 60001 10" YELLOW FLAME BURNER 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 17 | 60025 CLEANING TEE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 18 | PL14124 DRAFT REGULATOR 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 19 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 20 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 20 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 21 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 22 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 24 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 25 | 60015 CONTROL KNOB 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 26 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
