YUKON - CAST IRON DOOR
DH04100--

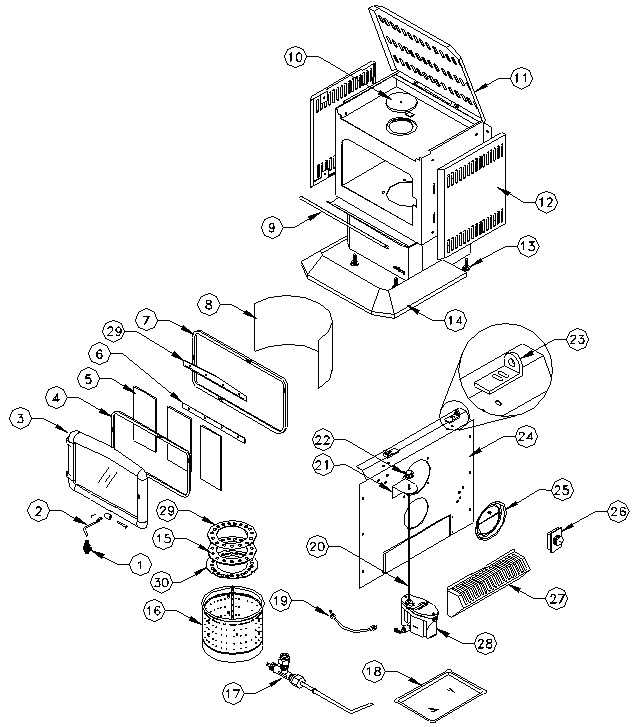

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 3 | SE24021H CAST IRON DOOR WITH GASKET, HANDLE AND LATCH 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 4 | AC06810 1/8" x 3/8" x 6' SELF-ADHESIVE BLACK GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 5 | SE20006 10 9/32" x 5 9/16" CAST IRON DOOR 3 GLASS KIT - YUKON HIMALAYA 1 / appliance (sold individually) | CAD $210.00 | -- | |
| 6 | PL20008 BOTTOM GLASS RETAINER WITH GASKET 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 8 | PL14118-01 STAINLESS STEEL HEAT REFLECTOR 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 9 | PL14128 19 3/4" x 1/16" BRASS TRIM FOR DECORATIVE TRAY 1 / appliance (sold individually) | CAD $36.00 | -- | |
| 10 | SE21047 PRESSURE RELEASE COVER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 11 | PL14001 YUKON EXTERIOR TOP 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 12 | PL14050 LEFT OR RIGHT SIDE DECORATIVE PANEL 2 / appliance (sold individually) | CAD $60.00 | -- | |
| 13 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 14 | 60029 8" YELLOW FLAME BURNER 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 15 | PL21051 8" MIDDLE BURNER RING - B 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 16 | 60029 8" YELLOW FLAME BURNER 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 18 | PL14131 OIL PAN 2 / appliance (sold individually) | CAD $46.00 | -- | |
| 20 | PL14058-01 FLOW RATE CONTROL ROD 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 21 | PL14018 FLOW RATE CONTROL ROD GUIDE 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 22 | 60015 CONTROL KNOB 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 23 | PL14008 DECORATICE TOP HINGE 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 24 | PL14002 REAR HEAT SHIELD 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 26 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 26 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 27 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 28 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 29 | PL21051 8" MIDDLE BURNER RING - B 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 30 | PL21050 8" BOTTOM BURNER RING - C 1 / appliance (sold individually) | CAD $75.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
