YUKON - STEEL DOOR
DH04100PA--

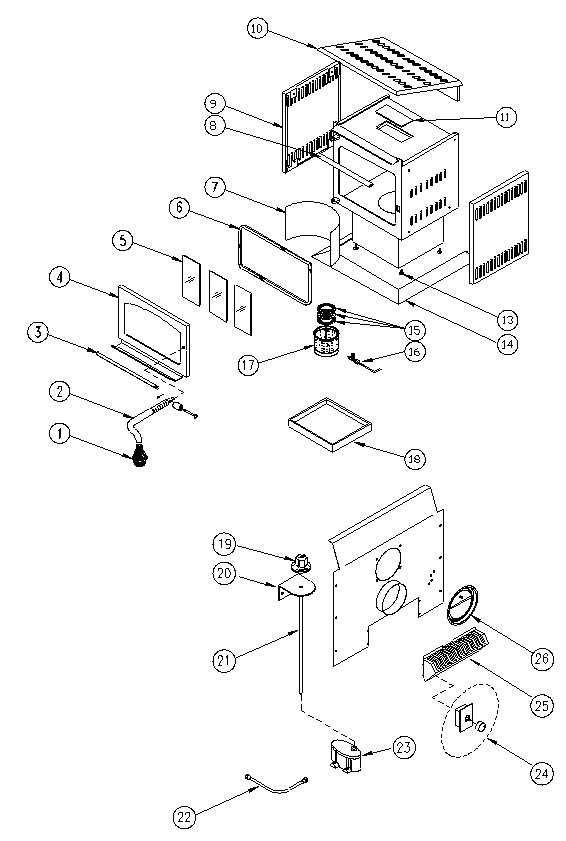

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC09165 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 5 | SE14128 11 5/8" x 6 3/8" STEEL DOOR 3 GLASS SET - ALASKA/YUKON 1 / appliance (sold individually) | CAD $210.00 | -- | |
| 6 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 7 | PL14118-01 STAINLESS STEEL HEAT REFLECTOR 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 8 | PL14098 YUKON DECORATIVE GRILL MOULDING 1 / appliance (sold individually) | CAD $36.00 | -- | |
| 11 | SE21047 PRESSURE RELEASE COVER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 14 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 15 | SE21022 CATALYTIC RING ''A'' 8 in BURNER 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 15 | PL21051 8" MIDDLE BURNER RING - B 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 15 | PL21050 8" BOTTOM BURNER RING - C 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 15 | SE09981-01 8" TOP BURNER RING 3826 WITH LONG SUPPORTS 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 16 | 60025 CLEANING TEE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 16 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 17 | 60029 8" YELLOW FLAME BURNER 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 19 | 60015 CONTROL KNOB 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 21 | PL14058-01 FLOW RATE CONTROL ROD 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 24 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 24 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 26 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 26 | PL14124 DRAFT REGULATOR 1 / appliance (sold individually) | CAD $75.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
