EVEREST
DH04200--

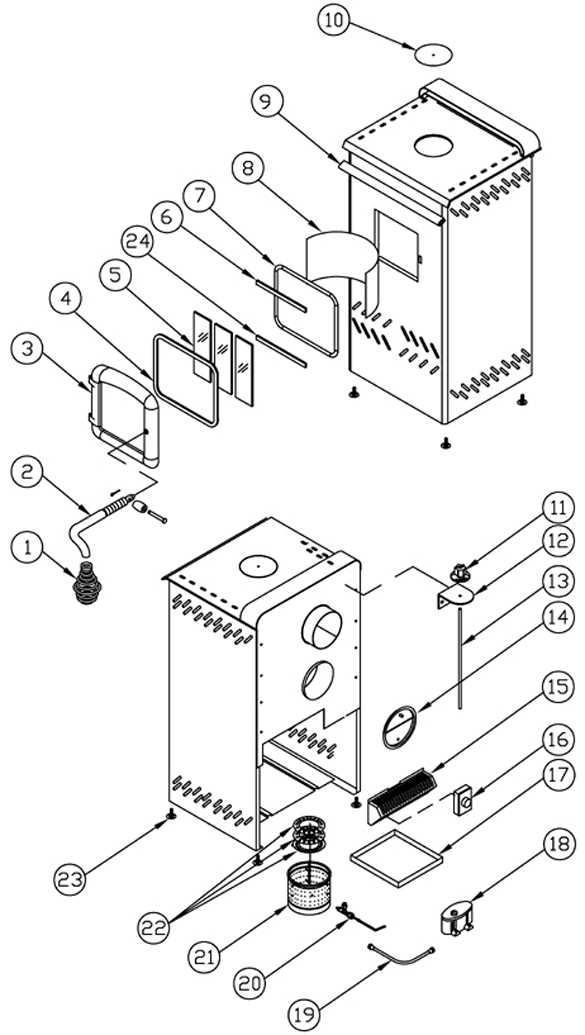

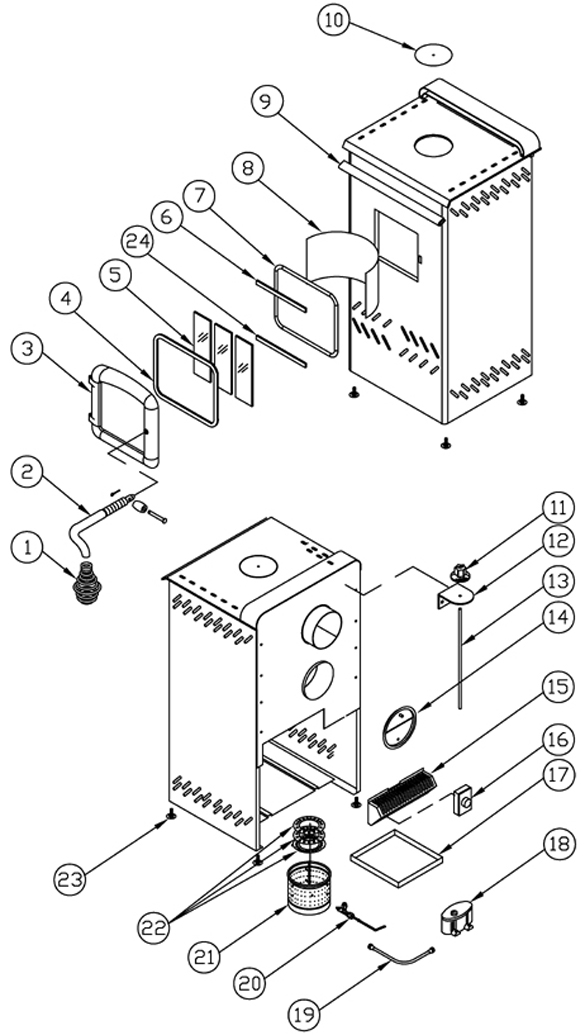

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 2 | AC09160 HANDLE &LATCH KIT 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 4 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 5 | PL20206 EVEREST/MONT-BLANC GLASS 3 / appliance (sold individually) | CAD $50.00 | -- | |
| 6 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 7 | AC06000 SILICONE AND 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 9 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 10 | SE21047 PRESSURE RELEASE COVER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 11 | 60015 CONTROL KNOB 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 12 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 13 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 14 | PL14124 DRAFT REGULATOR 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 15 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 16 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 16 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 18 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 19 | SE21055 EVEREST OIL PIPE 1 / appliance (sold individually) | -- | -- | |
| 20 | 60025 CLEANING TEE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 20 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 21 | 60029 8" YELLOW FLAME BURNER 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 22 | PL21051 8" MIDDLE BURNER RING - B 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 22 | SE09981-01 8" TOP BURNER RING 3826 WITH LONG SUPPORTS 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 22 | PL21050 8" BOTTOM BURNER RING - C 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 23 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 24 | 45088 EVEREST INSTALLATION MANUAL 1 / appliance (sold individually) | -- | -- | |
| 25 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
